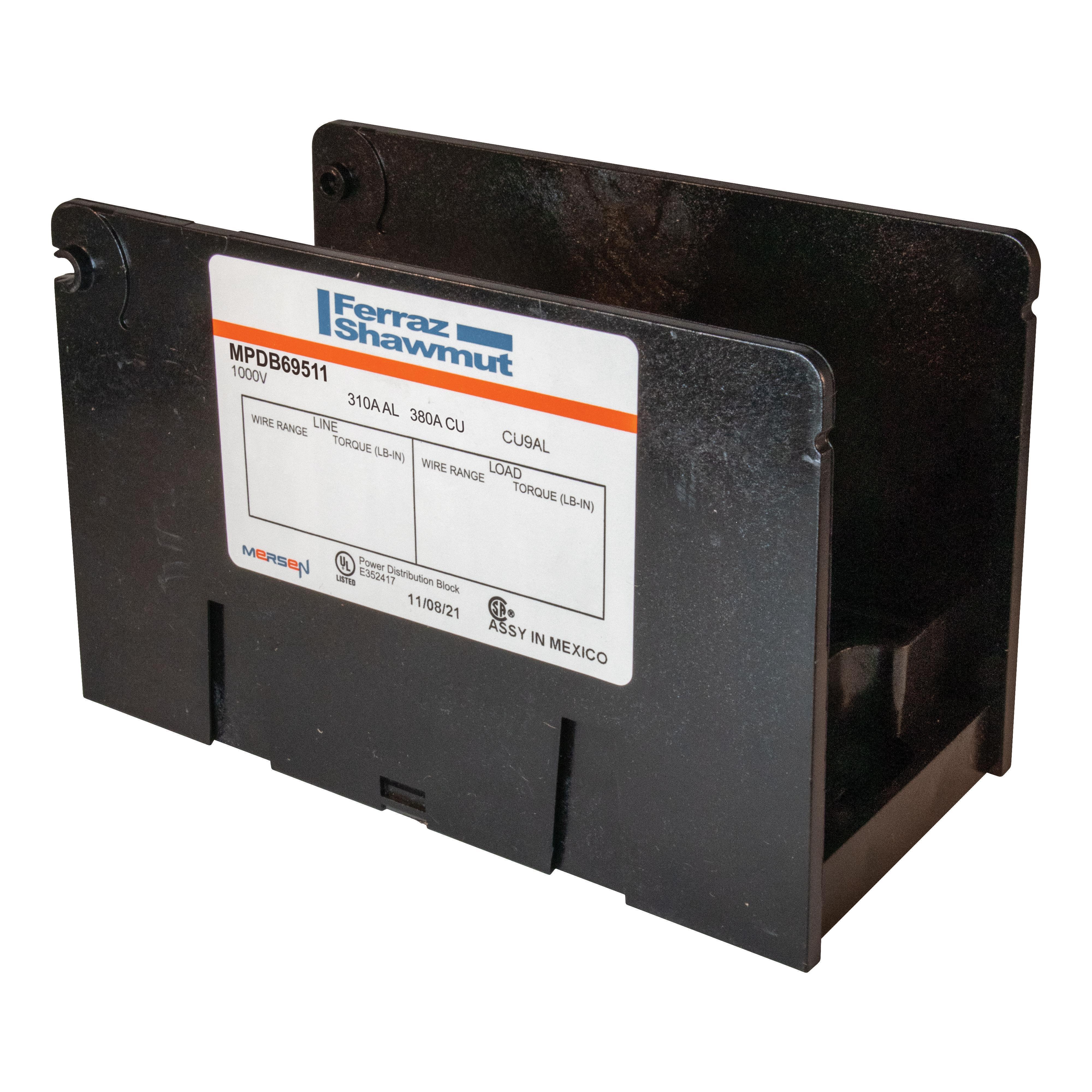

Mersen MPDB69511 Large Open Style Power Distribution Block, 600 V AC, 380 A, 1 Pole, 4 AWG to 500 kcmil Wire, Polycarbonate
Sku #78200145568
MFG #MPDB69511
Attributes
| Type: | Large Open Style |
| Voltage Rating: | 600 V AC |
| Number of Poles: | 1 |
| Series: | MPDB |
| Amperage Rating: | 380 A |
| Primary Connections/Pole: | 1 |
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only
- Connectors are all 1-piece tin plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate
- See-through, hinged safety covers provide a greater degree of safety and shock resistance where required
- Hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL 508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
- 4 AWG to 500 kcmil Al line, 6 to 4/0 AWG Al load
- Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction Tap-Off Points
- RoHS Compliant|UL File No. E352417|CSA Class 6228-01, File No. 069363_0_000|CE Certified|UL94-V0 Flammability
