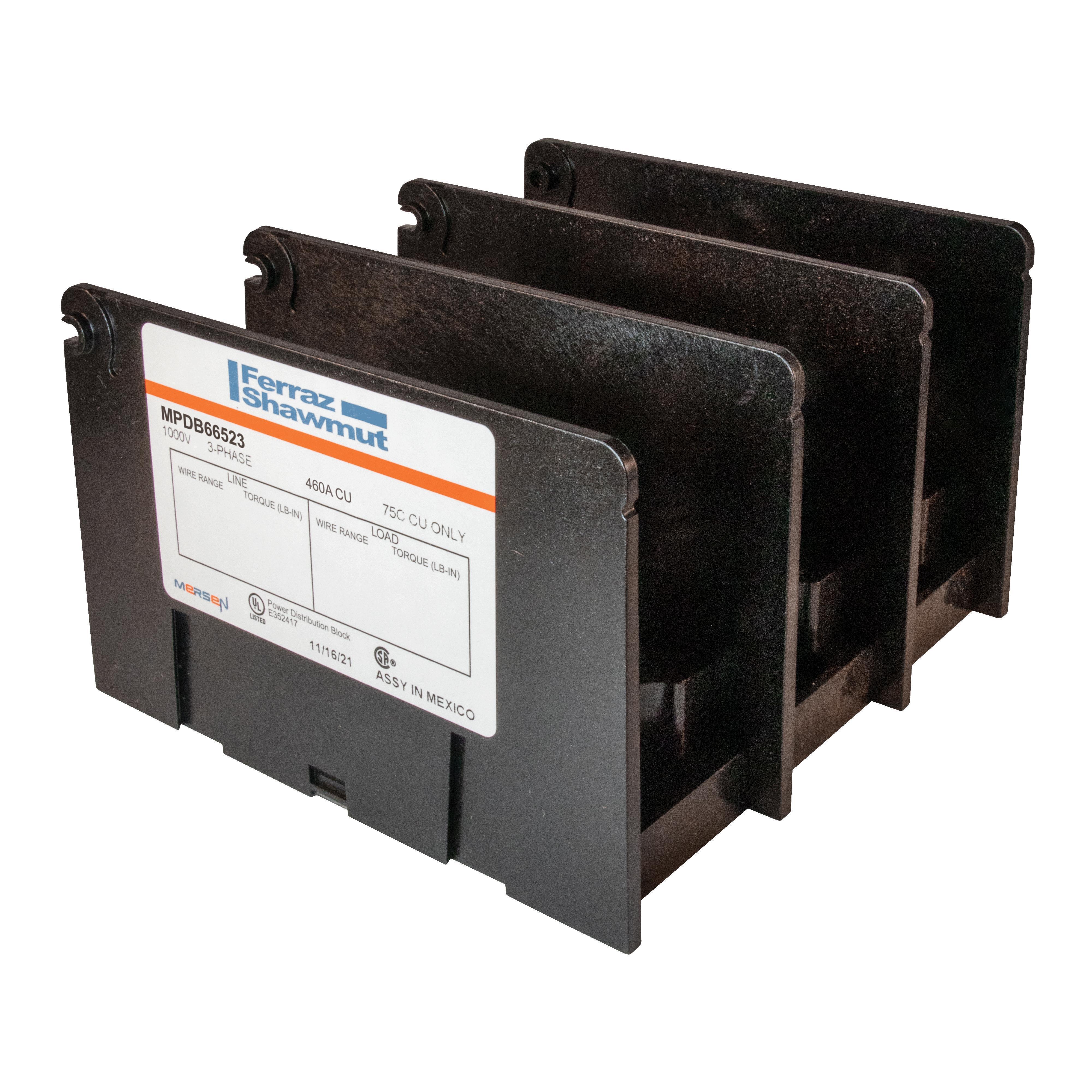

Mersen MPDB66523 Intermediate Open Style Power Distribution Block, 600 V AC, 460 A, 3 Poles, 10 to 4/0 AWG Wire, Polycarbonate
Sku #78200145156
MFG #MPDB66523
Attributes
| Type: | Intermediate Open Style |
| Voltage Rating: | 600 V AC |
| Number of Poles: | 3 |
| Series: | MPDB |
| Amperage Rating: | 460 A |
| Primary Connections/Pole: | 2 |
- RoHS Compliant|UL File No. E352417|CSA Class 6228-01 File No. 069363_0_000|CE Marked|UL94-V0
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only and all 1-piece tin plated
- Connectors are all 1-piece tin-plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate
- See-through, hinged safety covers provide a greater degree of safety and shock resistance where required
- Hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
- 10 to 4/0 AWG Cu line/load
- Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point Applications
