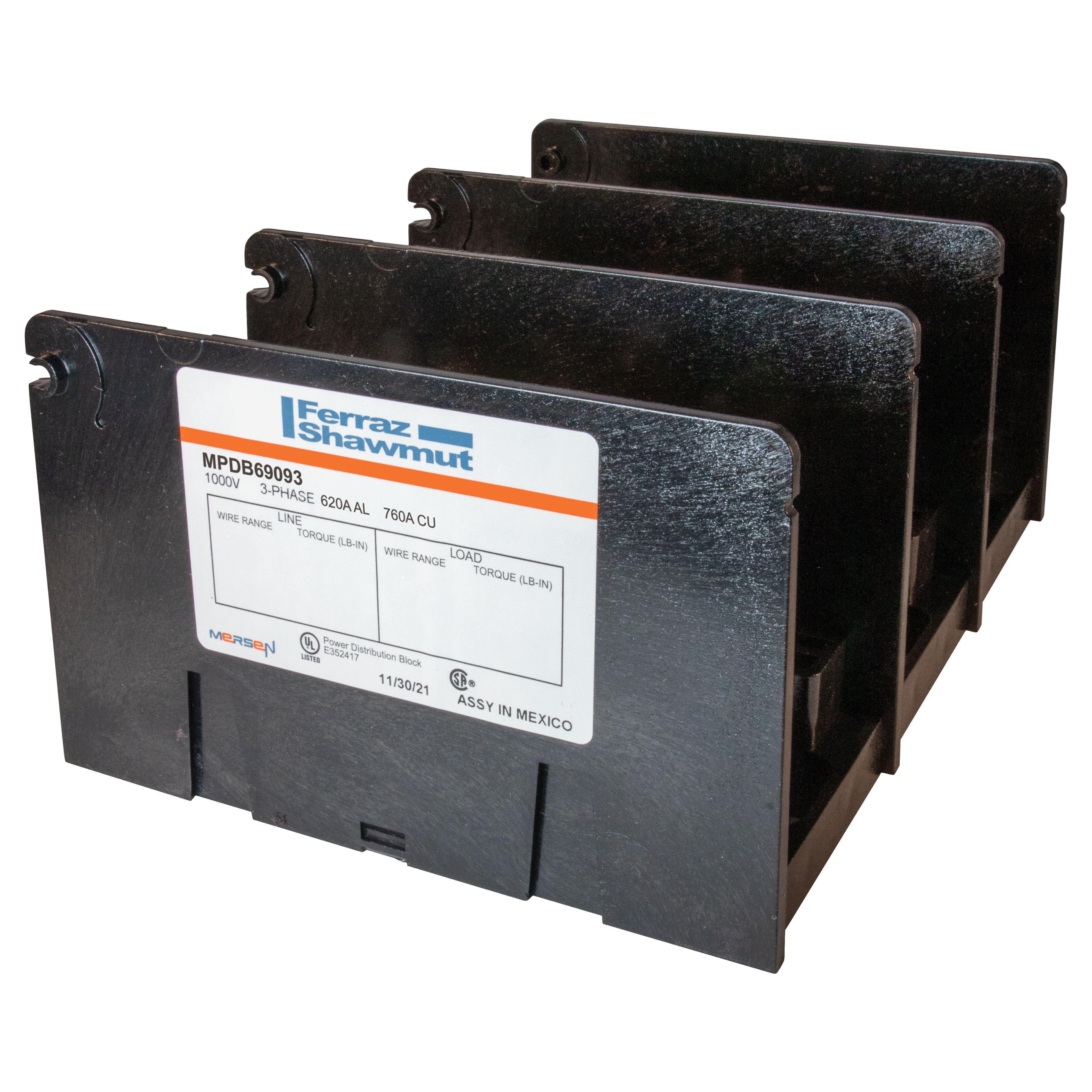

Mersen MPDB69093 Large Open Style Power Distribution Block, 600 V AC, 760 A, 3 Poles, 4 AWG to 500 kcmil Wire, Polycarbonate
Sku #78200145115
MFG #MPDB69093
Attributes
| Type: | Large Open Style |
| Voltage Rating: | 600 V AC |
| Number of Poles: | 3 |
| Series: | MPDB |
| Amperage Rating: | 760 A |
| Primary Connections/Pole: | 2 |
- Adder poles can be stacked to form multi-pole units in the field without the use of tools, adder poles allow for customization of primary and secondary wire combinations
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only and all 1-piece tin plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate, see-through hinged safety covers are optional and provide a greater deg of safety and shock resistance where required, hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
- Polycarbonate safety covers provide dead-front protection
- Each cover has a test probe hole in the center for circuit checking
- Tin plated aluminum contact
- One cover is needed for each pole
- Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point Applications
- RoHS Compliant|UL 1953 File No. E352417|CSA Class 6228-01
