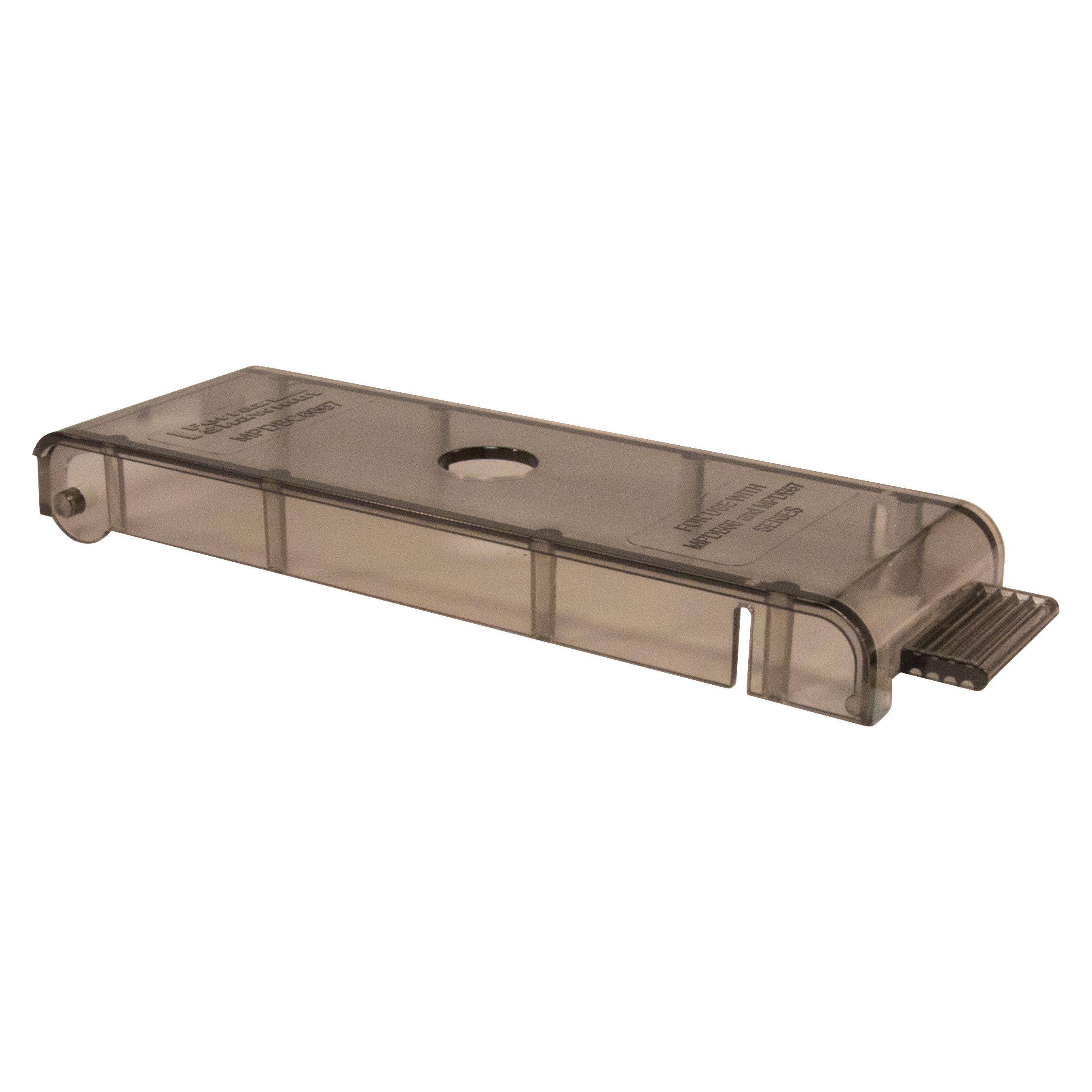

Mersen MPDBC6667 Hinged Safety Cover, For Use With MPDB Intermediate Series Open Style Power Distribution Block, Polycarbonate
Sku #78200144934
MFG #MPDBC6667
Attributes
| Type: | Hinged |
| Specifications: | 600 V AC, Snap-On Mount |
| Country of Origin: | MX |
| Suitable For Use With: | MPDB Intermediate Series Open Style Power Distribution Block |
| Material: | Polycarbonate |
- Adder poles can be stacked to form multi-pole units in the field without the use of tools, adder poles allow for customization of primary and secondary wire combinations
- Aluminum connectors accept both AL or CU wire while copper connectors accept CU wire only and all 1-piece tin-plated
- Insulators are virtually unbreakable, made of glass filled polycarbonate, see-through hinged safety covers are optional and provide a greater degree of safety and shock resistance where required, hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
- Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point Applications
- RoHS Compliant|UL Listed File No. E352417|CSA Class 6228-01
