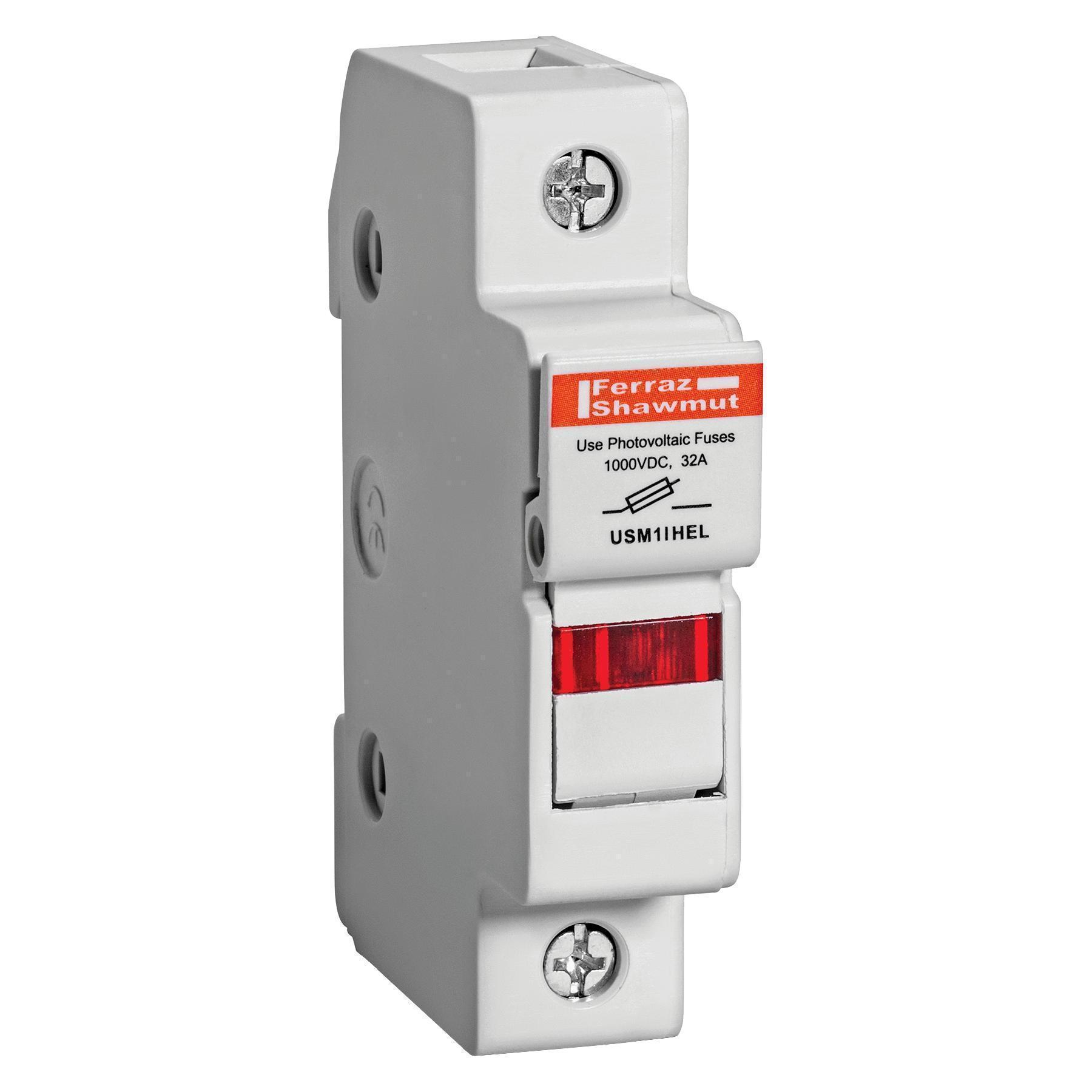

Mersen UltraSafe™ USM1IHEL Modular Fuse Holder With Visual Indicator, 600 V AC/1000 V DC, 30 A, 14 to 10 AWG, 14 to 6 AWG Wire, 1 Pole
Sku #78200144106
MFG #USM1IHEL
Attributes
| Series: | USM |
| Amperage Rating: | 30 A |
| Number of Phases: | 1 |
| Voltage Rating: | 600 V AC/1000 V DC |
| Number of Poles: | 1 |
| Class: | Photovoltaic Midget |
- IP20 finger safe
- Solid or stranded 14 to 10 AWG dual conductor size, 14 to 6 AWG single conductor size
- Modular design
- Lockable
- Sealable in closed and open position
- Compact footprint
- Quick, tool-free, easy fuse change outs
- All circuits up to 600 VAC for motors, control circuits, transformers and DC circuits up to 1000 VDC
- RoHS Compliant|UL 4248-18 File No. E347822|UL 4248-1, 4248-14 File No. E52283|CSA C22.2 Class 6225 File No. 32169|IEC 60269-2-1, 60947-3|CSA File No. Class 6225-01 File No. 032169_0_000|CE Certified|UL 94-V-0 Flammability Rating
