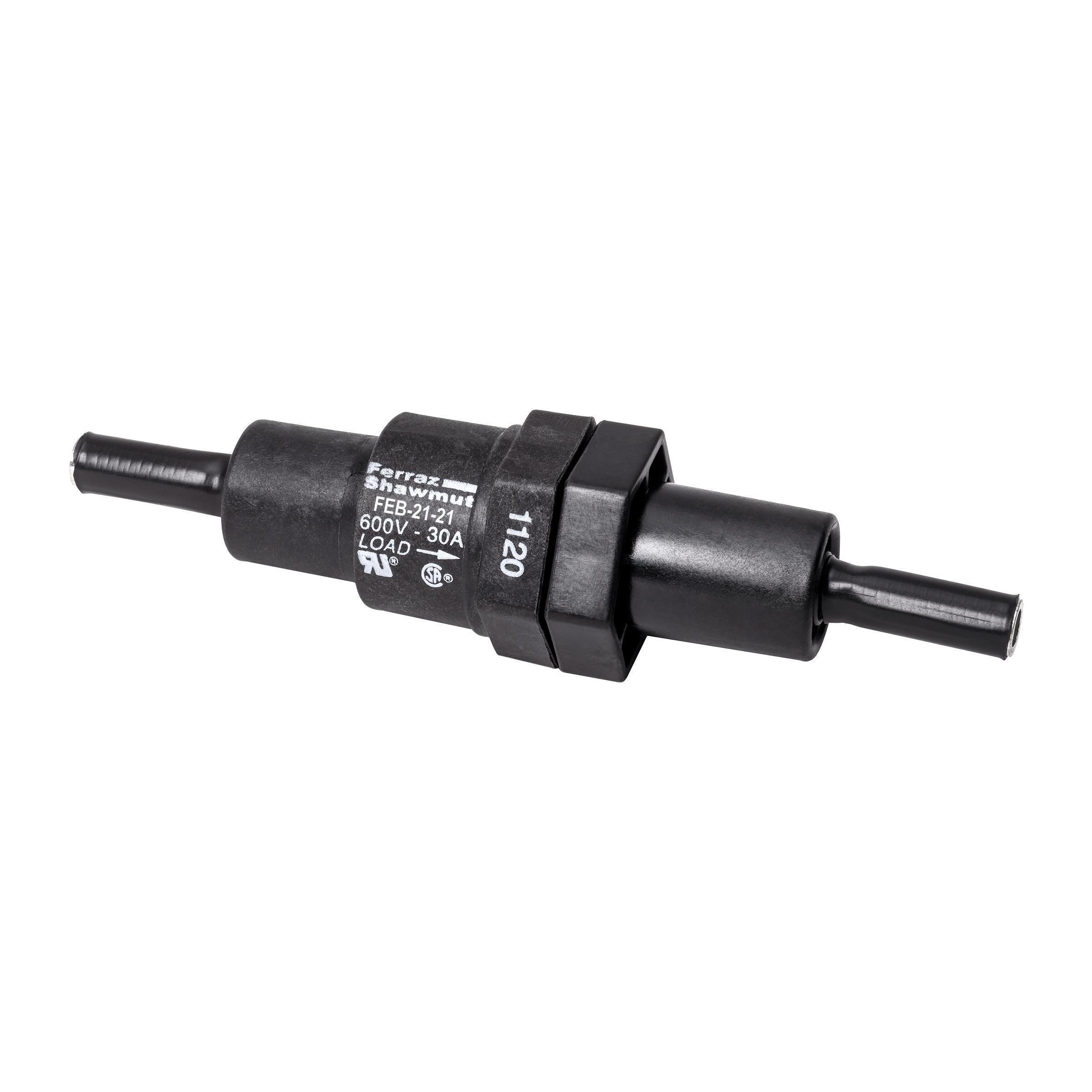

Mersen FEB-21-21 FEB Non-Breakaway Fuse Holder, 600 V AC/DC, 30 A, 4 AWG, 6 AWG Wire, 1 Poles
Sku #78200130084
MFG #FEB-21-21
Attributes
| Type: | Non-Breakaway |
| Voltage Rating: | 600 V AC/DC |
| Number of Poles: | 1 |
| Series: | FEB |
| Amperage Rating: | 30 A |
| Number of Phases: | 1 |
- Breakaway version quickly disconnects line side during pole knockdown in compliance with state and federal highway commission standards
- (3) O-rings per pole for watertight applications
- Colored O-rings for quick detection
- Accepts midget or class CC fuses
- Wide assortment of terminal variations
- High heat, impact resistant insulator
- Captive nut or screw for quick installations
- Polarized dual pole provides simultaneous disconnection
- Tulip fuse clip for improved contact and low losses
- Permanently installed neutral versions quickly identified by white nuts
- Environmentally friendly no-lead solder used
- Highly visible catalog number even with insulation boots installed
- Wire gauge size identified on insulation boots for quick, accurate trimming
- (1) 4 AWG solid, (1) 6 AWG solid/stranded, (2)10 AWG solid/stranded copper crimp terminal type 21 wire size
- Without insulated boot
- 4 AWG, 6 AWG, 10 AWG
- RoHS Compliant|UL Listed|UL Recognized|UL 4248-4 IZLT2 File No. E52283|CSA Certified|CSA C22.2 Class 6225 File No. 32169
- Street Lighting, Parking Lot Lighting, Traffic Signaling, Sports Lighting, Boats and Marinas and Humid/Corrosive Environments
