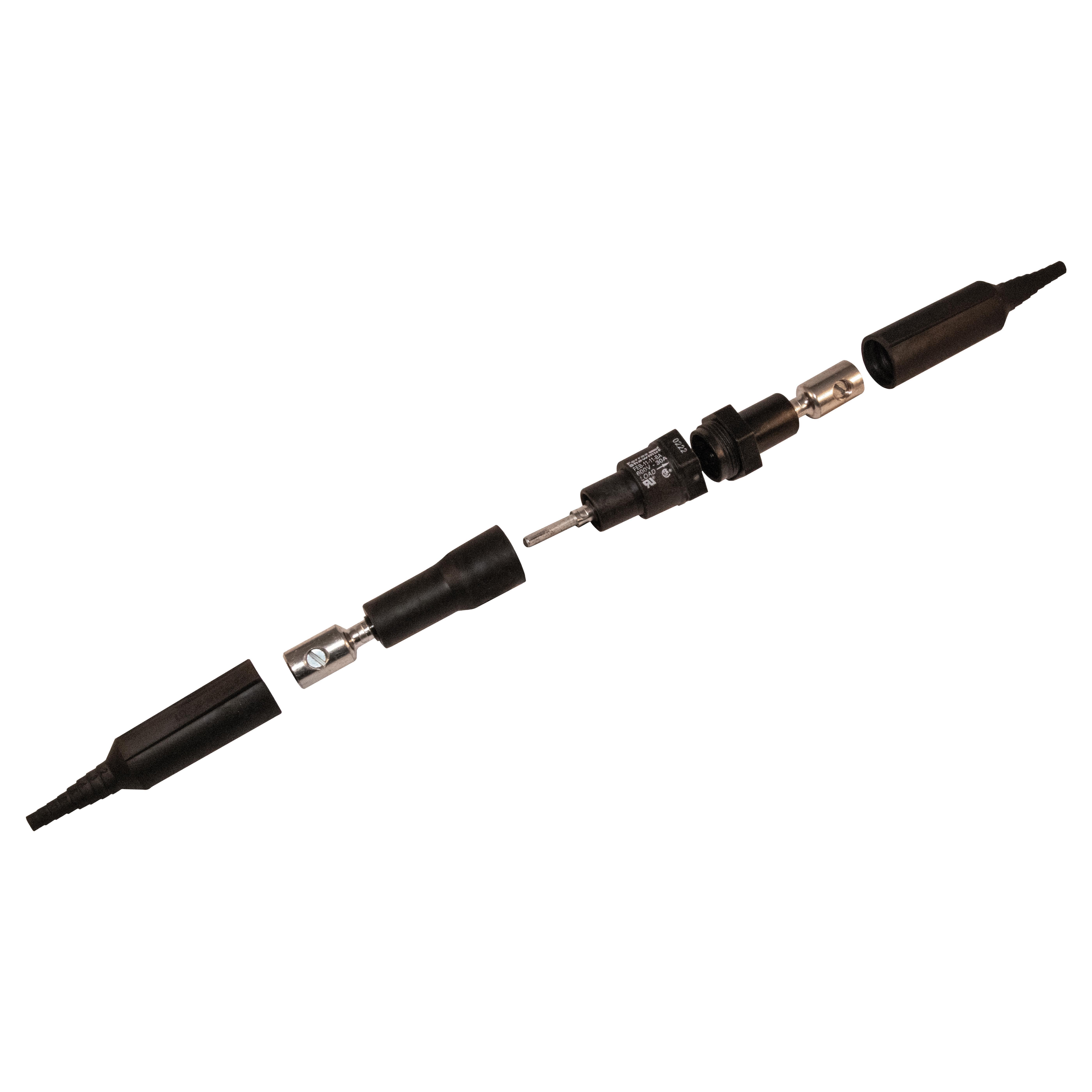

Mersen FEB-11-11-BA In-Line Fuse Holder, 600 V AC, 30 A, 12 to 8 AWG Wire, 1 Pole
Sku #78200130069
MFG #FEB-11-11-BA
Attributes
| Series: | FEB |
| Amperage Rating: | 30 A |
| Number of Phases: | 1 |
| Voltage Rating: | 600 V AC |
| Number of Poles: | 1 |
| Class: | Midget |
- Breakaway version quickly disconnects line side during pole knockdown in compliance with state and federal highway commission standards
- 3 O-rings per pole for watertight applications
- Colored O-rings for quick detection
- Single and dual poles
- Accepts midget or class CC fuses
- Wide assortment of terminal variations
- High heat, impact resistant insulator
- Captive nut or screw for quick installations
- Polarized dual pole provides simultaneous disconnection
- Permanently installed neutral versions quickly identified by white nuts
- Environmentally friendly no-lead solder used
- Highly visible catalog number even with insulation boots installed
- Wire gauge size identified on insulation boots for quick, accurate trimming
- Copper terminal
- (1) 12 - 8 AWG and (2) 14 - 12 AWG line/load wire size
- Breakaway version equipped with breakaway stud, breakaway boot, and insulating boots for both line and load sides
- Street Lighting, Parking Lot Lighting, Traffic Signaling, Sports Lighting, Boats and Marinas and Humid/Corrosive Environments Applications
- RoHS Compliant|UL 4248-1|UL File No. E52283|CSA C22.2 Class 6225|CSA 32169
