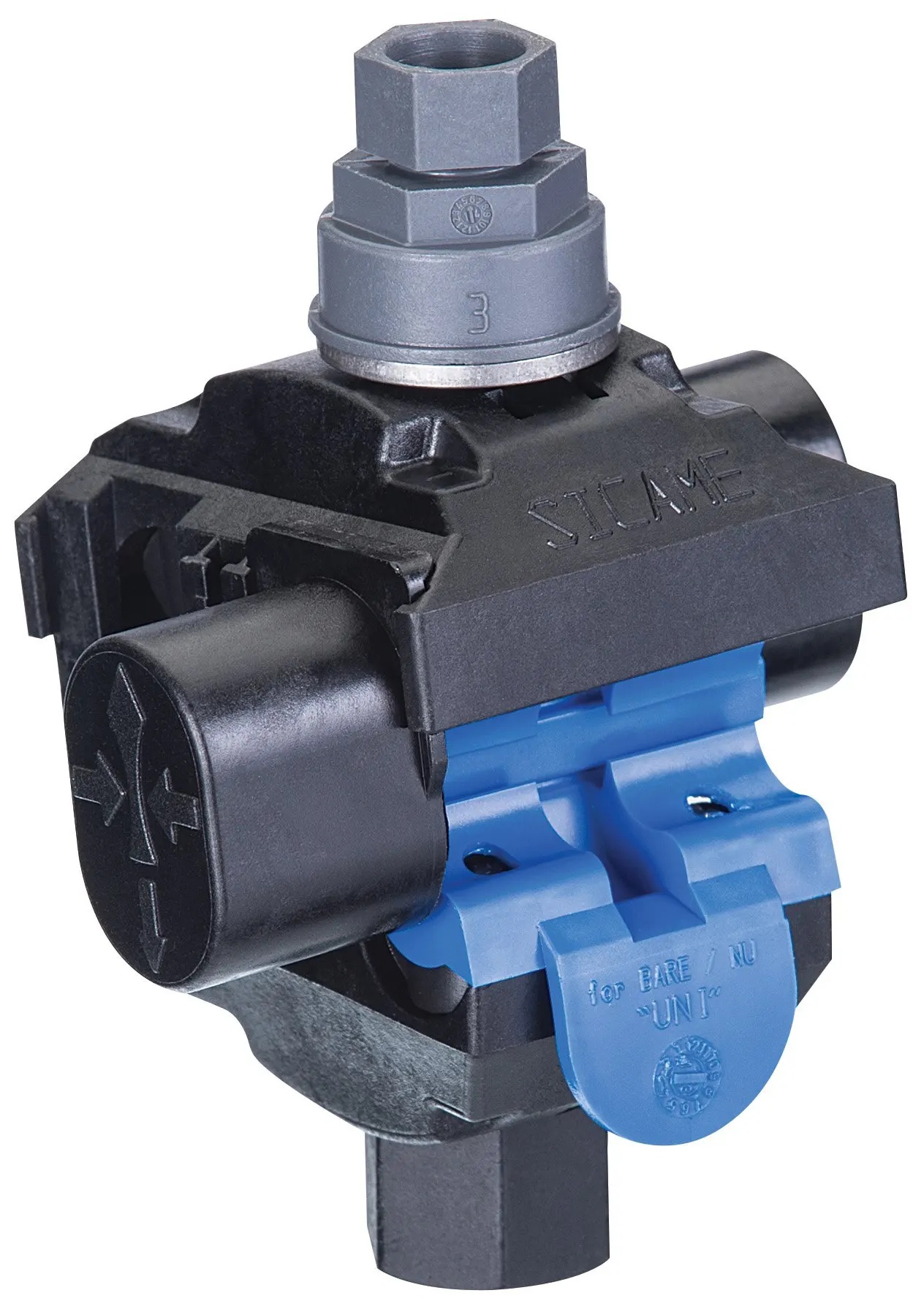

BUCHANAN B-TAP® BTC500-4 Insulation-Piercing Piercing Insulated Tap Connector, 1/0 AWG to 500 kcmil Main, 14 to 10 AWG Tap
Sku #78178945452
MFG #BTC500-4
Attributes
| Type: | Insulation-Piercing |
| Voltage Rating: | 600 V AC |
| Temperature Rating: | 90 deg C |
| Conductor Size: | 1/0 AWG to 500 kcmil Main, 14 to 10 AWG Tap |
| Specifications: | 2-Bolt, 3.9 in-lb Torque, 5/8 in Socket |
| Dimensions: | 3 in W x 3.9 in D x 4.5 in H |
- CSA Certified|RoHS Compliant|UL Listed
- Breakaway torque nut snaps off when UL torque requirements are met
- Second nut remains for easy connector removal
- Self-insulated housing eliminates the need for tape
- Safely installs on energized systems
- Grease-filled end cap seals end of conductor for superior weather protection
- Grease-filled boots protect copper teeth from corrosion and prevent arcing
- Hardened copper teeth pierce insulation and bite into conductors
