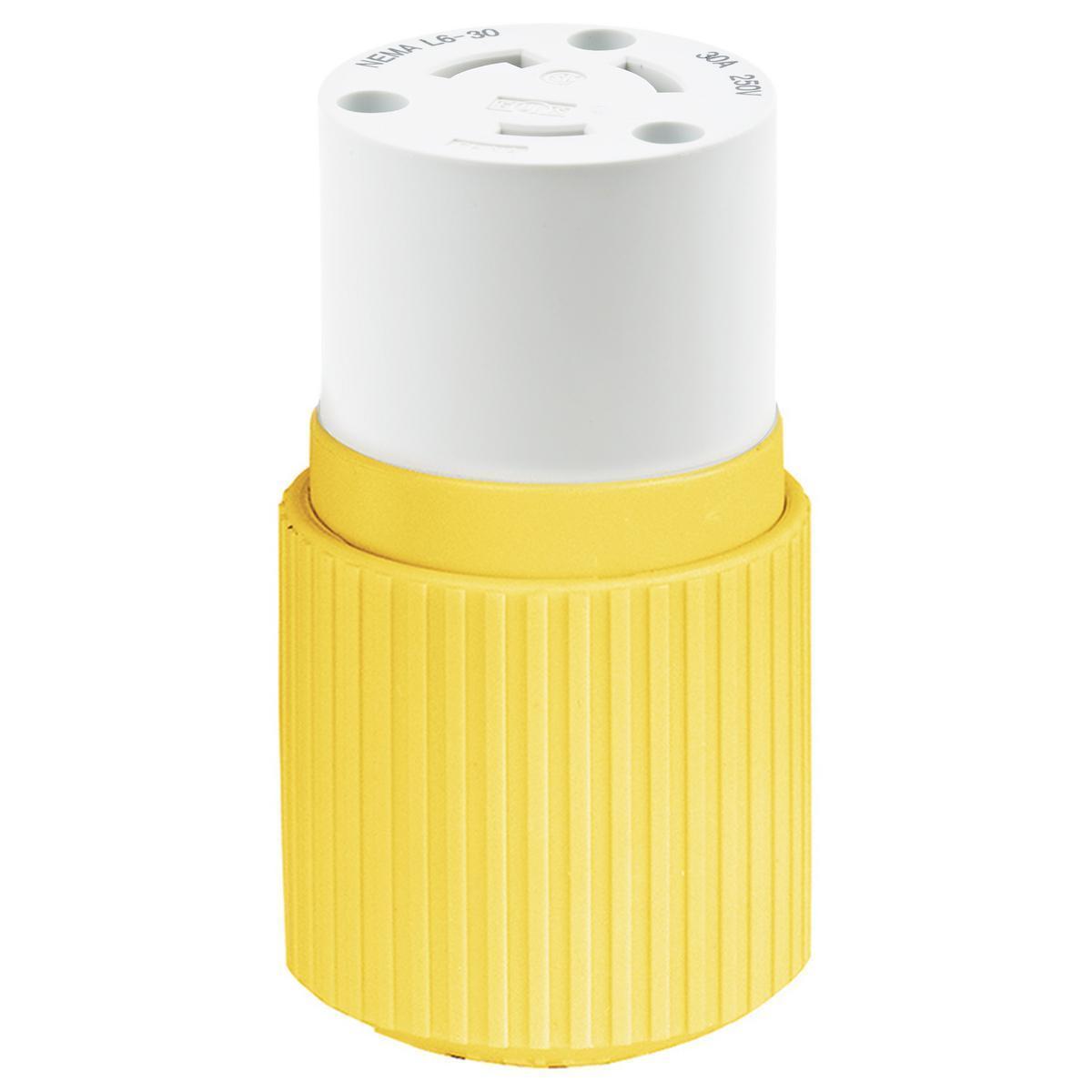

Bryant Electric 70630NCC Grounding Standard Locking Connector, 250 VAC, 30 A, 2 Poles, 3 Wires, Yellow
Sku #78178611022
MFG #70630NCC
Attributes
| Type: | Grounding Standard |
| Amperage Rating: | 30 A |
| Number of Wires: | 3 |
| Voltage Rating: | 250 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA L6-30R |
- CSA C22.2 No. 42M1984/182.2M1987 File No. LR16215|CE Marked|NOM Certified|Federal Specification W-C-596|NEMA WD1/WD5/WD6|RoHS Compliant|UL 498 File No. E1381 Guide No. AXUT|CSA C22.2 No. 182.2/17 File No. LR16215 Guide No. 20T2|UL94 HB Flammability Rating
- Heavy Duty Industrial Applications
- Impact/chemical resistant toughened nylon construction
- Corrosion resistant
- 12 to 8 AWG conductor
- Indoor dry unless protected by additional mean environmental conditions
- Cord mounted
- Internal self-centering Quad-Gripper cord grip with radius teeth design
- Double wall construction for extra durability
- EPDM dust seal surrounds cord to help prevent moisture and contaminants from entering wiring chamber
- Captive terminal screws are backed out to simplify wiring
- Combination Phillips®/slotted terminal and assembly screws
