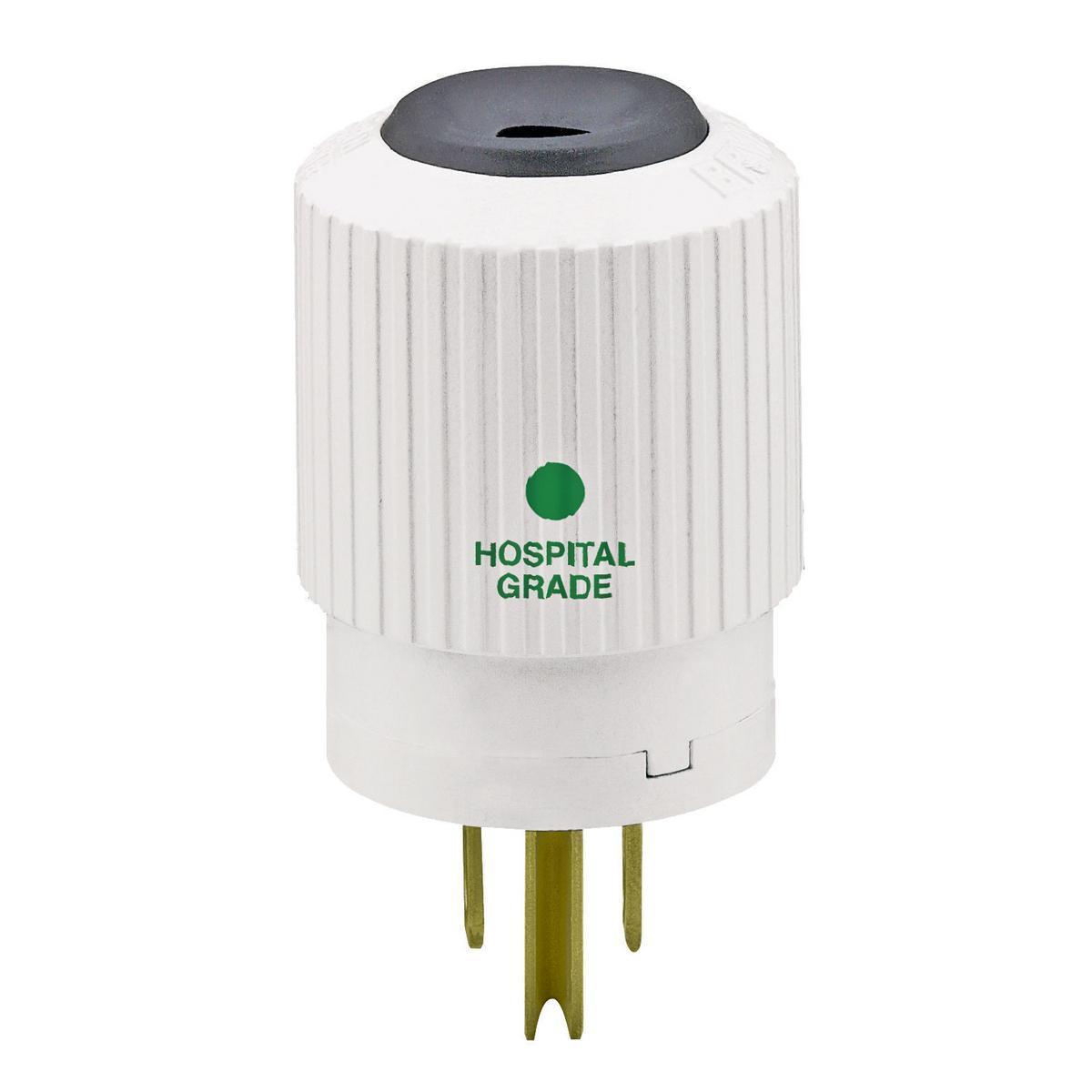

Bryant Electric BRY8266NP 1-Phase Grounding Male Standard Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Sku #78178600591
MFG #BRY8266NP
Attributes
| Type: | 1-Phase Grounding Male Standard |
| Amperage Rating: | 15 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-15P |
- Tough, impact and chemical resistant nylon housing
- While in use ratings on the sides and amperage, voltage and NEMA ratings imprinted on the face allow for easy identification
- All portable cord
- Combination Phillips®/slotted captive terminal screws backed out and ready for wiring
- Patented internal Triple Gripper® cord clamp automatically centers the cord and secures it using a unique radius teeth design
- Thermoplastic elastomer dust seal surrounds cord to help prevent moisture and contaminants from entering the wiring chamber
- Accepts 0.3 to 0.655 in Dia cord without any cutting, inserts or adapters
- Double wall construction for extra durability
- Transparent terminal cover with a see-through window and teardrop wiring pockets to ease insertion of stranded wire and facilitate making the right connection the first time
- Captive, quick thread assembly screw
- Wide-rib, non-slip hand grip
- Indoor Dry Environment
- RoHS Compliant|UL 498 File No. E1381 Guide No. AXUT|CSA File No. LR16215 Guide No. 20T2|Federal Specification W-C-596|NOM Certified|CE Marked|NEMA WD1/WD5/WD6
