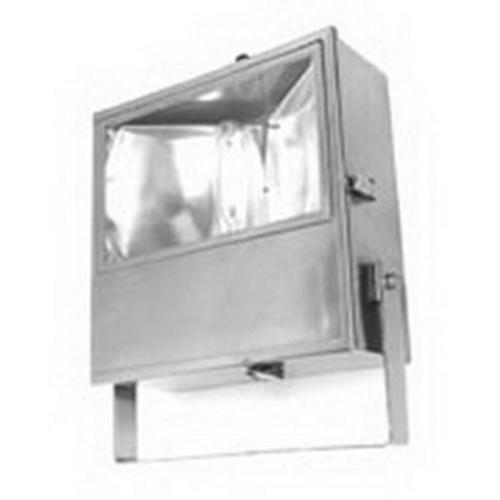

Appleton® Areamaster™ GAMS771LMTI2 HID Floodlight Fixture With Integral Ballast, (1) Lamp, 465 W Fixture, 120/208/240/277 V AC
Sku #78138197943
MFG #GAMS771LMTI2
Attributes
| Type: | HID |
| Fixture Wattage: | 465 W |
| Lamp Wattage: | 400 W |
| Voltage Rating: | 120/208/240/277 V AC |
| Amperage Rating: | 1.4/1.6/1.7/1.8/1.9/2.2/3.3/3.8 A |
| Lamp Base Type: | Mogul |
- Compact in size, rugged and dependable
- A wide range of ballasts and voltages are available for both domestic and export applications
- Completely assembled fixture saves installation time and cost
- Easily removable ballast tray
- Hinged door
- Seamless welded construction
- Can be mounted in any position ranging from lens down to horizontal, lens up
- Stainless steel latches to allow relamping without tools
- 3/4 in NPT conduit/cable entry
- 3.3 A at 120 VAC, 1.8 A at 208 VAC, 1.6 A at 240 VAC, 1.4 A at 277 VAC starting, 3.8 A at 120 VAC, 2.2 A at 208 VAC, 1.9 A at 240 VAC, 1.7 A at 277 VAC operating
- Chemical plants, refineries, shipboard and marine industrial process areas where severely corrosive agents are present, powerful, efficient weatherproof lighting for medium and large areas such as chemical plants, refineries, shipboard and marine industrial process areas where severely corrosive agents are present and hazardous, marine, wet locations
- UL 1598, 1598A, 844|UL File No. E10794|CSA C22.2 No. 94, C22.2 No. 137, C22.2 No. 250|CSA LR25248|NEC Certified|CEC Certified|Class I, Division 2, Groups A, B, C, D, Class I, Zone 2 IIC|CEC Class II, Groups E, F, G, Class III
