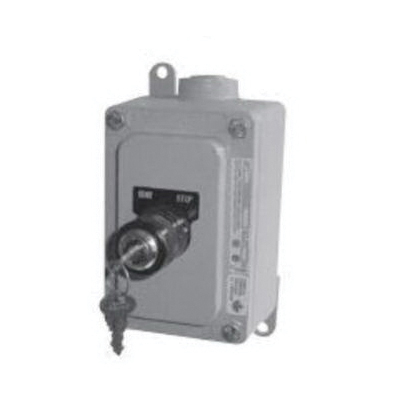

Appleton® ECS2SA82U Selector Switch Control Station, 600 V AC, 10 A, 2NO-2NC Contact, 1 Operators, NEMA 3R/7BCD/9EFG NEMA Rating
Sku #78138196840
MFG #ECS2SA82U
Attributes
| Series: | ECS |
| Amperage Rating: | 10 A |
| Contact Configuration: | 2NO-2NC |
| Voltage Rating: | 600 V AC |
| Number of Operators: | 1 |
| Operator Type: | Keyed |
- Class I, Div 1, 2, Groups B, C, D, Class II, Div 1, 2, Groups E, F, G, Class III|CSA Certified
- For hazardous locations
- Corrosion resistant captive stainless steel hex head bolts hold cover to body
- Dozens of possible combinations of push buttons, selector switches and pilot lights
- Contact your local sales representative for combinations not found in the catalog
- Push buttons supplied standard with neoprene weather boot
- Clearly marked terminals with brass screws assure quick, easy wiring
- Push buttons and selector switches employ heavy duty, 10 A 600 VAC rated contact blocks
- Pushbutton and selector switch contacts are silver cadmium oxide assuring long trouble free operation
- Pilot Lights are supplied with jewel guard and 120 VAC lamp
- Non-factory sealed devices
- Hole in guard will accept locks with up to 1/4 in hasp
- Permits locking of pushbutton to prevent unauthorized operation
- Eliminates the need for adding external sealing fittings at each conduit entry
- Smooth rounded integral bushing in hub protects conductor insulation
- Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
