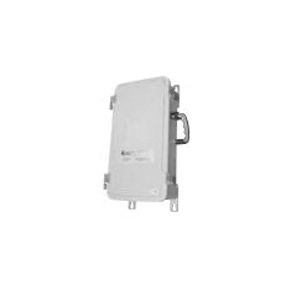

Appleton® WD2S1034F Explosion proof Factory Sealed Fused Load Disconnect Switch, 600 V AC, 100 A, 50 hp
Sku #78138196693
MFG #WD2S1034F
Attributes
| Type: | Explosion proof Factory Sealed Fused |
| Voltage Rating: | 600 V AC |
| Horsepower: | 50 hp |
| Series: | WD2S |
| Amperage Rating: | 100 A |
| Number of Wires: | 3 |
- CSA C22.2 File No. 4|UL 698|cCSAus 039569|NEC Compliant|CEC Class I Div 2, Groups B, C, D|Class II, Div 1 and 2, Groups E, F, G
- Factory sealed, external seals not required
- 100 A models and smaller are suitable for use with DC voltages (250 VDC Max) as well as AC voltages
- Short circuit withstand rated to 10000 RMS symmetrical amperes (unfused)
- Removable hinged cover allows for ease of installation and maintece
- Single top and bottom conduit entries supplied, drilled and tapped 1-1/4 in NPT
- Unit is equipped with defeatable door interlock which allows emergency access when switch is energized
- Cover can be padlocked closed
- Ergonomically designed rugged cast aluminum handle
- Operating handle can be locked in the Off position with provision to lock in the On position
- Used to functions as load disconnect switch or as individual motor control switch
