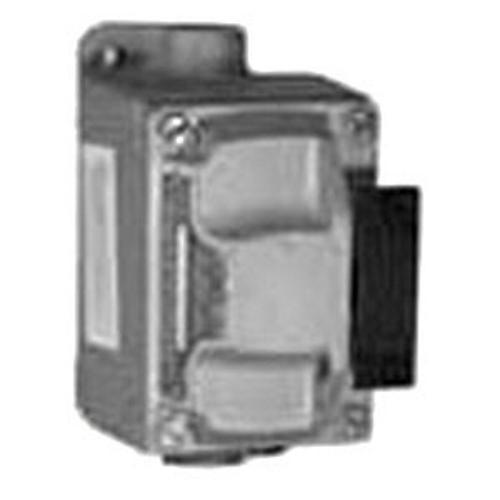

Appleton® Contender™ EDS2194 1-Gang 2-Circuit Dead End Pushbutton Control Station, 600 V AC, 10 A, 1 Operators, NEMA 3/7CD/9EFG NEMA Rating
Sku #78138196527
MFG #EDS2194
Attributes
| Type: | 1-Gang 2-Circuit Dead End |
| Voltage Rating: | 600 V AC |
| Number of Operators: | 1 |
| Series: | EDS |
| Amperage Rating: | 10 A |
| Contact Mode: | Momentary |
- Finish is epoxy powder coat for enhanced corrosion resistance
- Large back box for ample wiring room
- Ground screw installed in bodies for ground continuity
- Corrosion resistant stainless steel hexagonal head captive screws hold covers to body
- Factory sealed enclosure eliminates need for adding sealing fittings and compound at each conduit entrance
- Factory sealed pilot lights supplied with jewel/guard assembly and 120 VAC/VDC, 50/60 Hz, 6 W lamp (LED provided as option)
- Dozens of possible combinations of push buttons, pilot lights and selector switches
- Accurately tapped, tapered hubs for tight rigid joints and ground continuity
- Stainless steel pushbutton shaft operates within stainless steel bushing assuring long, maintece free operation
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Pushbutton and selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements
- Assures positive contact and long, trouble free operation
- Enclosed stainless steel helper spring prevents accidental operation of pushbutton in severe vibration installations
- All momentary push buttons are supplied with lockout type guards as standard
- Hole in guard will accept locks with up to 1/4 in hasp
- Permits locking of pushbutton to prevent unauthorized operation
- Clearly marked terminals with brass screws and spade terminals assure quick, easy wiring
- For remote control of motors
- Class I, Div 1, Groups C, D, Class I, Div 2, Groups B, C, D, Class II, Div 1, 2, Groups E, F, G, Class III|UL 508/698/1203 File No. E164877/E10449
- Internal Ground Screw
- 1 Year
