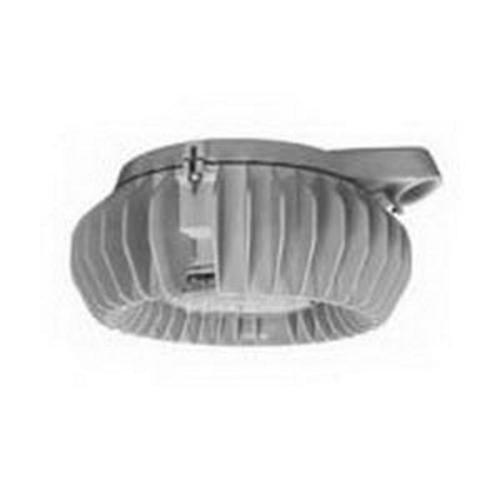

Appleton® Mercmaster™ MLEDNS255P5BU Symmetrical Enclosed and Gasketed Luminaire, 120 to 277 V AC, Baked Gray Epoxy-Clad Housing
Sku #78138196197
MFG #MLEDNS255P5BU
Attributes
| Type: | Symmetrical |
| Voltage Rating: | 120 to 277 V AC |
| Lamp Wattage: | 95.5 W |
| Series: | MLEDN |
| Amperage Rating: | 0.83 to 0.36 A |
| Average Life: | 60000 hr |
- Compact lightweight low profile design is suited for low mounting heights
- Modular design allows scores of fixture component combinations to meet installation needs
- Hinge has high lip for added safety during installation and servicing
- Hinge and bolt construction assures 360 deg compression at all points on ballast housing gasket for positive sealing
- Swing away design of captive bolt and nut simplifies servicing
- NPT and metric threads standard
- NEMA type V symmetrical light distribution
- Lamp wattage equivalent to 250 W HPS/PSMH
- 1-1/2 in NPT hub stanchion
- Polycarbonate globe optical assembly
- UL Listed for Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, Group IIC, Class II, Division 1, Group E, F, G, Class II, Division 2, Group F, G, Class III UL 1598, 1598A, 8750, 844|CSA C22.2 No.250, C22.2 No.137, 065182
- For marine and wet locations, wide range of industrial, chemical processing and other areas where flammable gases and vapors are present, areas of low clearance, low ceiling heights or where fixture weights must be minimized, non-hazardous locations where severe weather conditions, excessive moisture, dirt, dust, corrosive atmosphere or high ambient temperatures are encountered, pulp and paper mills, processing plants, chemical plants, oil refineries, foundries, manufacturing plants, storage areas, waste and sewage treatment, parking garages, other areas where dust, water, dirt and rough usage are a problem
