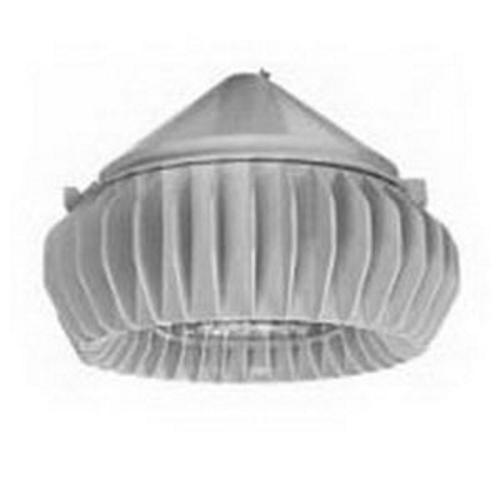

Appleton® Mercmaster™ MLEDND252P5BH LED Enclosed and Gasketed Luminaire, 347 to 480 V AC, Baked Gray Epoxy-Clad Housing
Sku #78138196151
MFG #MLEDND252P5BH
Attributes
| Series: | LED |
| Amperage Rating: | 0.36 A |
| Light Output: | Symmetrical |
| Voltage Rating: | 347 to 480 V AC |
| Lamp Wattage: | 92 W |
| Average Life: | 60000 hr |
- CSA C22.2 File No. 250.0|C22.2 File No. 137, cCSAus 065182|UL 1598|UL 1598A|UL 8750|UL 844|UL Listed for Class I, Div 2, Groups A, B, C, D, Class I, Zone 2, Group IIC, Class II, Div 1, Group E, F, G, Class II, Div 2, Group F, G, Class III
- Marine and Wet Locations, Wide Range of Industrial, Chemical Processing and other Areas, Pulp and Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Manufacturing Plants, Storage Areas, Waste and Sewage Treatment and Parking Garages Applications
- Compact light weight low profile design is suited for low mounting heights
- Modular design allows scores of fixture component combinations to meet installation needs
- Hinge has high lip for added safety during installation and servicing
- Hinge and bolt construction assures 360 deg compression at all points on ballast housing gasket for positive sealing
- Swing away design of captive bolt and nut simplifies servicing
- NPT and metric threads standard
- NEMA type V symmetrical light distribution
