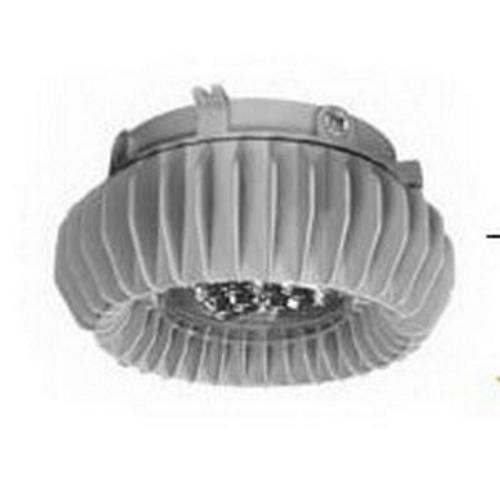

Appleton® Mercmaster™ MLEDNC703P5BU Type V Symmetrical Enclosed Gasketed LED Luminaire, 33/35 W Fixture, 120 to 277 V AC, Baked Gray Epoxy Clad Housing
Sku #78138196137
MFG #MLEDNC703P5BU
Attributes
| Type: | Type V Symmetrical Enclosed Gasketed |
| Voltage Rating: | 120 to 277 V AC |
| Amperage Rating: | 0.17/0.31 A |
| Series: | MLEDN |
| Fixture Wattage: | 33/35 W |
| Lamp Wattage: | 35 W |
- Compact light weight low profile design is suited for low mounting heights
- Modular design allows scores of fixture component combinations to meet installation needs, uses the same mounting hoods as the Mercmaster™ III HIDs
- Accommodates a wide range of voltages
- Hinge has high lip for added safety during installation and servicing
- Hinge and bolt construction assures 360 deg compression at all points on ballast housing gasket for positive sealing
- Swing away design of captive bolt and nut simplifies servicing
- All Mercmaster™ mounting hoods have provision for easy field installation of fuses in fixtures
- NPT and metric threads standard
- 0.31 A at 120 VAC, 0.17 A at 277 VAC
- For marine and wet locations, pulp and paper mills, processing plants, chemical plants, oil refineries, foundries, manufacturing plants, storage areas, waste and sewage treatment, parking garages and other areas where dust, water, dirt and rough usage are a problem
- UL 1598/1598A/8750/844|CSA C22.2 No. 250.0/C22.2 No. 137|cCSAus 065182|NEC/CEC: Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, Group IIC, Class II, Division 1, Group E, F, G, Class II, Division 2, Group F, G, Class III|ATEX/IECEx: Zone 2 and 22 II 2 GD
