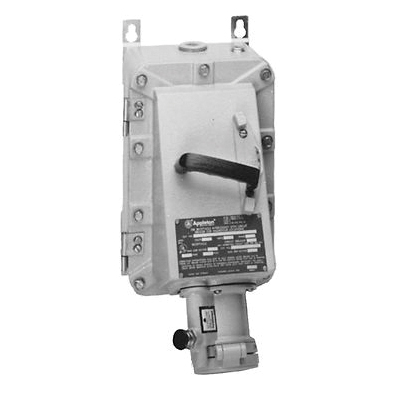

Appleton® EBR1034HFD100W Dust-Ignitionproof Explosionproof Interlocked Weather Resistant Circuit Breaker Receptacle With 600 V AC HFD Breaker, 600 V AC, 100 A, 4 Poles, 3 Wires
Sku #78138195631
MFG #EBR1034HFD100W
Attributes
| Type: | Dust-Ignitionproof Explosionproof Interlocked Weather Resistant |
| Voltage Rating: | 600 V AC |
| Number of Poles: | 4 |
| Series: | EBR |
| Amperage Rating: | 100 A |
| Number of Wires: | 3 |
- Plug is mechanically locked in receptacle when circuit breaker is On, design provides interlocked connect and disconnect operation as well as short circuit and thermal time delay overload protection
- Plug and receptacle contacts cannot be made or broken under load, breaker operating handle can be padlocked in either On or Off position and is trip free
- Circuit breakers are thermal magnetic type, 150 A frame size, 20 to 100 A trip
- Body is easily installed with four mounting brackets provided, each having keyhole slots
- Body has three 11/2 in taper tapped conduit openings, (1) top and (2) bottom, also provided are 3/4 in threaded openings (3/4 to 1/2 in reducer furnished) top and bott
- Cover is secured with captive quick bolts for easy installation or removal
- EBR explosionproof receptacle with interlocked circuit breakers utilize either ACP or CPH series plugs
- Air Conditioners, Compressors, Conveyors, Heaters, Motor Generators, Damp and Wet Locations, Corrosive Areas, Refineries, Petrochemical Plants, Petroleum Refineries, Paint and Chemical Plants and Indoor/Outdoor Applications
- CSA C22.2 No. 25/30/159/182.1|CSA File No. 038644|CEC Class I, Groups B, C, D|Class II, Group G and Coal Dust|Class III
