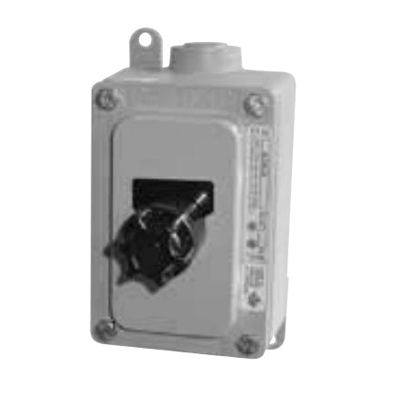

Appleton® ECS3LR 1-Gang Control Station, 120 V AC, NEMA 3R/7BCD/9EF
Sku #78138195573
MFG #ECS3LR
Attributes
| Type: | 1-Gang |
| Voltage Rating: | 120 V AC |
| Connection Type: | 1/2 to 3/4 in Hub |
| Series: | ECS |
| Number of Pilot Lights: | 1 |
| Indicator Type: | Red LED |
- Constructional feature explosionproof and dust-ignitionproof
- Corrosion resistant captive stainless steel hex head bolts hold cover to body
- Dozens of possible combinations of pushbuttons, selector switches and pilot lights
- Pushbuttons supplied standard with neoprene weather boot
- Clearly marked terminals with brass screws assure quick, easy wiring
- Push buttons and selector switches employ heavy duty, 10 A 600 VAC rated contact blocks that are silver cadmium oxide assuring long trouble free operation
- Pilot Lights are supplied with jewel guard and 120 VAC lamp
- Factory sealed pushbuttons are supplied with lockout type guards, hole in guard locks with up to 1/4 in hasp
- Permits locking of pushbutton to prevent unauthorized operation
- Smooth rounded integral bushing in hub protects conductor insulation
- Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
- T6 temperature rating
- CEC Class I Division 1 and 2 Group B C D/Class II Division 1 and 2 Group E F G/Class III|CSA C22.2 #25/C22.2 #30/C22.2 #14-M
- Ideal for installation in chemical and petrochemical plants, refineries and other process industries, hazardous locations
