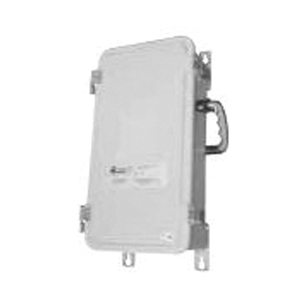

Appleton® WD2S6034F Fusible Disconnect Switch, 240/480/600 V AC, 60 A, 15 hp at 240 V AC/30 hp at 480 V AC/50 hp at 600 V AC
Sku #78138194973
MFG #WD2S6034F
Attributes
| Type: | Fusible |
| Voltage Rating: | 240/480/600 V AC |
| Horsepower: | 15 hp at 240 VAC/30 hp at 480 VAC/50 hp at 600 VAC |
| Series: | WD2S |
| Amperage Rating: | 60 A |
| Enclosure Type: | NEMA 3/3R/4/4X/12 |
- Factory sealed no external seals required
- Stainless steel latches for easy access and corrosion resistance
- Standard epoxy powder coating delivers exceptional corrosion resistance
- Ergonomically designed rugged cast aluminum handle
- Removable hinged cover allows for ease of installation and maintece
- Short circuit withstand rated to 10000 RMS symmetrical amperes (unfused)
- Single top and bottom conduit entries supplied, drilled and tapped 1-1/4 in NPT
- Key hole mounting feet for easy installation
- Unit is equipped with defeatable door interlock which allows emergency access when switch is energized
- Cover can be padlocked closed
- Operating handle can be locked in the OFF position with provision to lock in the ON position
- Line side accommodates #8 to 4/0 AWG copper wire, load side accommodates #8 to 4/0 copper wire
- 100 A models and smaller are suitable for use with DC voltages (250 VDC max) as well as AC voltages
- All models are suitable for use with AC voltages to 600 VAC max
- copper-free aluminum enclosure
- Durable cast aluminum operating handle
- Stainless steel hardware
- Constructional feature explosionproof and mounting feet
- CEC Canada: Ex de IIB + H2 T5|cCSAus 039569|CSA C22.2 #4|NEC/CEC Class I Division 2 Group B C D/Class II Division 12 Group F G/Ex de IIB + H2/Class I Zone 1 AEx de IIB + H2|NEC: Class I Zone 1 AEx de IIB + H2 T5|UL 698
- Functions as load disconnect switch or as individual motor control switch
