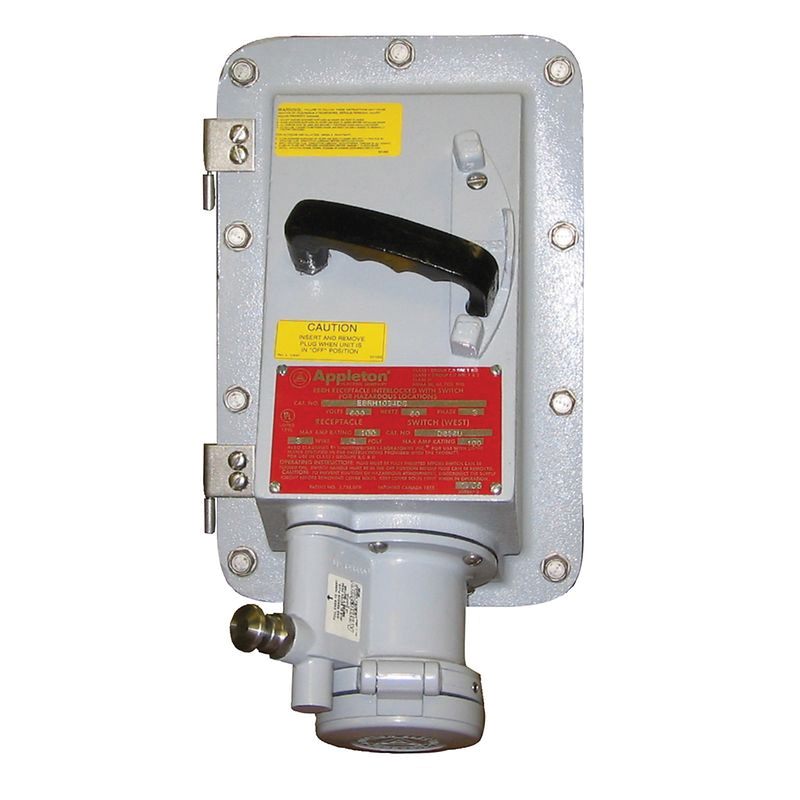

Appleton® EBR15034FD150W EBR Dust-Ignitionproof Explosionproof Receptacle With 600 V AC FD Breaker, 600 V AC, 150 A, 4 Poles, 3 Wires
Sku #78138194549
MFG #EBR15034FD150W
Attributes
| Type: | Dust-Ignitionproof |
| Voltage Rating: | 600 V AC |
| Number of Poles: | 4 |
| Series: | EBR |
| Amperage Rating: | 150 A |
| Number of Wires: | 3 |
- EBR interlocked circuit breaker provides interlocked connect and disconnect operation as well as short circuit and thermal time delay overload protection
- To operate, insert plug which automatically locks into receptacle and turn breaker handle to On position, to remove plug, turn handle to Off position, lift plug release knob and pull plug out
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Shell and extra pole grounding style 2
- Spring door keeps dust out of receptacle when plug is not in use, screw cap also supplied
- Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Contacts have beryllium copper wire springs
- Plug mechanical cable clamps prevent strain on cables they meet or exceed UL strain relief pull out requirements
- Neoprene bushing compressed by cable collar prevents entrance of water
- 1-1/2 in NPT tapped conduit openings one in top and two in bottom
- ACP and CPH plug fits Powertite™ series hazardous location and EBR receptacles
- UL 1010|UL 1203|UL 894|UL 1682|UL 1686|UL File No. E79132/E10784/E313360|NEC Class I, Div 1 and 2, Groups B, C, D|Class II, Div 1 and 2, Groups F, G Class III
- Air Conditioners, Compressors, Conveyors, Heaters, Motor Generators, Lighting Systems, Pumps, Locations Where Damp or Corrosive Conditions Exist and Process Industries, Petrochemical Plants, Petroleum Refineries, Paint and Chemical Plants Applications
