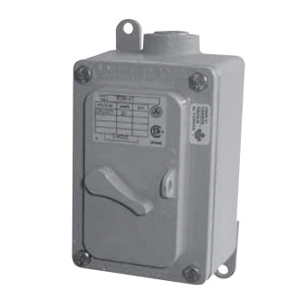

Appleton® ECS2F23 1-Gang Toggle Switch, NEMA 3R/7B/7C/7D/9E/9F/9G
Sku #78138192778
MFG #ECS2F23
Attributes
| Type: | 1-Gang |
| Number of Poles: | 2 |
| Actuator: | Front Operated Lever |
| Series: | ECS |
| Contact Rating: | 30 A at 120 to 277 V AC |
| Connection Type: | 1/2 to 3/4 in Hub |
- Constructional feature explosionproof and dust-ignitionproof
- Ideal for installation in chemical and petrochemical plants, refineries and other process industries
- Corrosion resistant captive stainless steel hex head bolts hold cover to body
- Dozens of possible combinations of pushbuttons, selector switches and pilot lights
- Pushbuttons supplied standard with neoprene weather boot
- Clearly marked terminals with brass screws assure quick, easy wiring
- Push buttons and selector switches employ heavy duty, 10 A 600 VAC rated contact blocks that are silver cadmium oxide assuring long trouble free operation
- Pilot lights are supplied with jewel guard and 120 VAC lamp
- Hole in guard locks with up to 1/4 in hasp
- Permits locking of pushbutton to prevent unauthorized operation
- Smooth rounded integral bushing in hub protects conductor insulation
- Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
- T6 temperature rating
- Aluminum alloy cover and cast copper-free aluminum body
- Non factory sealed switch
- CSA Type 4X|CEC Class I Division 1 and 2 Group B C D/Class II Division 1 and 2 Group E F G/Class III
