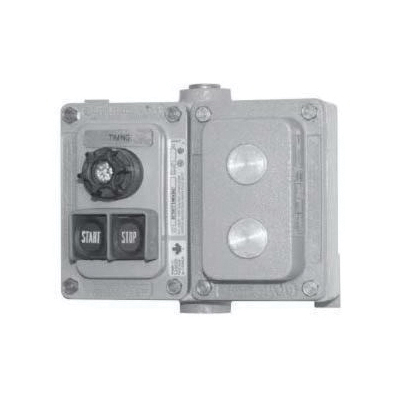

Appleton® ECS6TIM60AC Timer Control Station, 100/240 V AC, 10 A, NEMA 3R/7BCD/9EFG
Sku #78138192710
MFG #ECS6TIM60AC
Attributes
| Series: | ECS |
| Amperage Rating: | 10 A |
| Operating Temperature: | -20 to 65 deg C |
| Voltage Rating: | 100/240 V AC |
| NEMA Rating: | NEMA 3R/7BCD/9EFG |
| Material: | Aluminum |
- For lighting, small pumps, heat tracing and more
- O-Ring Seal
- Cast copperfree aluminum housing and cover with gray polyester epoxy powder coat finish, aluminum, steel and non-metallic components
- Corrosion-resistant, captive stainless steel hex head bolts fix the cover to the body
- Lockable push buttons are supplied standard with neoprene weather protected boot
- Yellow LED indicator light for easy confirmation of activation
- Quality CMOS type electronic timer allows for timing range of 0.1 sec to 600 hr
- Rated operational voltage of 100 to 240 VAC 50/60 Hz with a published tolerance of 85 to 264 VAC at 10 amps (resistive)
- Timer tested for shock and vibration resistance
- CSA C22.2 No. 25|CSA C22.2 No. 30|CSA C22.2 No. 14-M 038339
