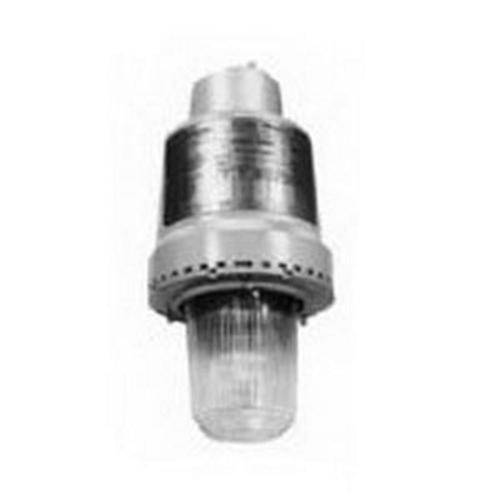

Appleton® Code Master™ Jr. CJPP1775G-MT Dust-Ignitionproof Factory Sealed Explosionproof HID Luminaire, (1) Lamp, 120/208/240/277 VAC, Epoxy Powder Coated Housing
Sku #78138192529
MFG #CJPP1775G-MT
Attributes
| Type: | Dust-Ignitionproof Factory Sealed |
| Voltage Rating: | 120/208/240/277 V AC |
| Lamp Wattage: | 175 W |
| Series: | CJ Series |
| Amperage Rating: | 0.9/0.5/0.35/0.3 A Starting/1.78/1.08/0.89/0.76 A Operating |
| Lamp Base Type: | Medium |
- Fixtures operate safely in high ambient temperatures
- Arrangement of heat producing components results in more efficient heat dissipation for cooler fixture operation
- Patented wireless design, threading of fixture unit onto mounting hood makes electrical connection (the only wiring required is attaching two wires to connection block in mounting hood)
- Connection block is easily wired loosen two screws, make wire connections and re-position connection block
- Safe, easy servicing without disconnecting any wiring, wireless fixture unit easily threads off mounting hood for convenient servicing or for immediate replacement with a stand by unit
- ACME double lead threads speed installation and fixture removal from mounting hood - only half as many turns are required as for single lead threads
- The threads do not stick or gall, eliminating problems often encountered with single-lead threads during fixture unit removal
- All threaded joints are flame-tight
- Heat and impact-resistant globes have smooth dust-resistant exterior
- Superior corrosion-resistance, with epoxy powder-coated finish
- SHOCKS™ - Absorbing medium base socket mounts prolong lamp life and porcelain socket with nickel plated phosphor bronze screw shell
- Strategic location of lamp socket in combination with interior prism design of the glass globe, provides optimum light distribution and control
- Assures long trouble free operation in high ambient areas
- 0.9 A at 120 VAC, 0.5 A at 208 VAC, 0.35 A at 240 VAC, 0.3 A at 277 VAC starting, 1.78 A at 120 VAC, 1.08 A at 208 VAC, 0.89 A at 240 VAC, 0.76 A at 277 VAC operating
- For chemical and petrochemical plants, such as manufacturers of plastics, paints and thinners in refineries and in other areas where ignitable vapors, dust, moisture and corrosive elements may be present, outdoor saltwater locations and for other wet locations, for use with threaded metal conduit
- CSA Certified Class I, Division 1/2, Groups B/C/D, Class II, Division 1/2, Groups E/F/G, Class III, Exd IIB + H2|CSA C22.2 No. 250/137 File No. 025428|NEC Class I, Division 1/2, Groups B/C/D, Class II, Division 1/2, Groups E/F/G, Class III|UL 1598/844 File No. E10444
