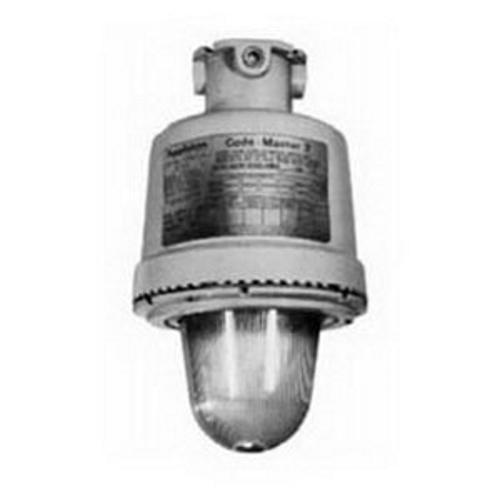

Appleton® Code Master™ 2 CPC4075MT Explosionproof HID Lighting Fixture, (1) Lamp, 400 W Fixture, 120/208/240/277 VAC, Epoxy Powder Coated Housing
Sku #78138192239
MFG #CPC4075MT
Attributes
| Type: | Explosionproof |
| Fixture Wattage: | 400 W |
| Lamp Wattage: | 400 W |
| Voltage Rating: | 120/208/240/277 V AC |
| Amperage Rating: | 1.75 A |
| Lamp Base Type: | Mogul |
- For use in chemical and petrochemical plants, such as manufacturers of plastics, paints and thinners in refineries and in other process areas where ignitable vapors, dust, moisture, marine and corrosive elements may be present, wet locations
- Fixtures operate safely in high ambient temperatures
- Arrangement of heat-producing components results in efficient heat dissipation for cooler fixture operation
- Explosion proof and dust-ignition proof
- Acme double-lead threads speed installation and fixture removal from mounting hood - only half as many turns are required as for single-lead threads, the threads do not stick or gall, eliminating problems often encountered with single-lead threads during fixture unit removal
- All threaded joints are flame-tight
- Integrally ballasted hid lighting fixtures
- Strategic location of lamp socket in combination with interior prism design of the glass globe, provides optimum light distribution and control
- Porcelain socket with nickel plated phosphor bronze screw shell, assures long trouble
- CSA C22.2 No.250, C22.2 No.137, 025428 Certified|UL Listed for Class I, Division 1, 2, Groups B, C, D, Class II, Division 1, 2, Groups E, F, G, Class III, CSA Class I, Division 1, 2, Groups B, C, D, Class II, Division 1, 2, Groups E, F, G, Class III Standard|UL 1598, 844|E10444 Listed
