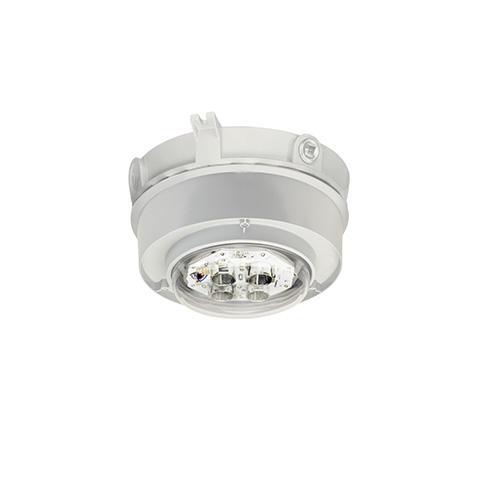

Appleton® Industrial Mercmaster™ IMLLEDS34G5BU Cylindrical Low Profile Ordinary Location Lighting With NEMA Type V Globe, (50) Lamp, 100 W Fixture, 120 to 277 V AC, Baked Gray Epoxy Powder Coated Housing
Sku #78138190810
MFG #IMLLEDS34G5BU
Attributes
| Type: | Cylindrical Low Profile |
| Voltage Rating: | 120 to 277 V AC |
| Amperage Rating: | 0.29 to 0.13 A |
| Series: | IMLLED |
| Fixture Wattage: | 100 W |
| Lamp Wattage: | 35 W |
- Compact lightweight low profile design is suited for low mounting heights
- Six standard mounting hood designs allow for mounting in any location
- Uses same mounting hoods as Mercmaster™ III
- Customize to the application requirements with four different globe options, clear and diffused polycarbonate, clear glass, or prismatic glass refractor
- Three light output levels for retrofit of HID fixtures up to 150 W
- Hinge has high lip for added safety during installation and servicing
- Hinge and bolt construction assures 360 deg compression at all points on fixture housing gasket for positive sealing
- Swing away design of captive bolt and nut simplifies servicing
- Standard NPT threads
- -40 to 131 deg F ambient temperature
- 1-1/4 in NPT hub stanchion
- For general purpose lighting and heavy industrial locations where severe weather conditions, excessive moisture, dirt, dust, corrosive atmospheres, or high ambient temperatures are encountered, marine and wet locations, areas of low clearance, low ceiling heights or where fixture weights must be minimized
- UL 50|50E|UL 1598|UL 1598A|UL 8750|CSA C22.2 No.0|C22.2 No.94.1|94.2|C22.2 No.60529|C22.2 No.250.0|ANSI|IEC 60529|cULus E279986|DLC Qualified Products Listed
