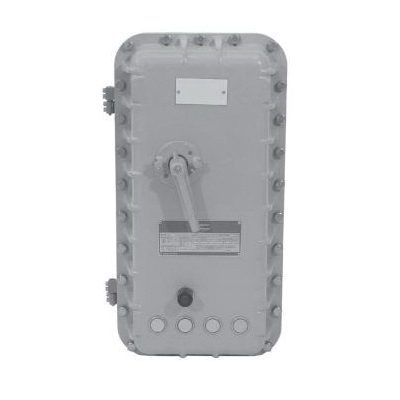

Appleton® AE0BA4W1 AEB Full Voltage Non-Reversing Watertight Bolted Motor Starter, 120 V AC V Coil, Open Enclosed Enclosure
Sku #78138189094
MFG #AE0BA4W1
Attributes
| Type: | Full Voltage Non-Reversing Watertight |
| Voltage Rating: | 480 V AC |
| Frequency Rating: | 60 Hz |
| Series: | AEB |
| Amperage Rating: | 18 A |
| Motor Power: | 5 hp |
- Precision machined flame path between box and cover
- Bolt on slotted mounting feet
- Stainless steel, captive quad lead cover bolts
- External stainless steel breaker operating handle
- Four point control terminal block, NEMA 1B with wire markers
- Breaker operators can be locked in the on/off position
- Standard outlets top and bottom
- Plugged 1/2 in outlets top and bottom for optional breather/drain
- Components are mounted on a galvanized steel removable pan
- O-ring gasket insures watertight integrity
- NEMA Size 0
- For under voltage protection, circuit protection and motor running protection applications
- ARRA Compliant|Buy American Act Compliant|UL 508, 698, 1203 Listed|CSA Certified|NEC|CEC Class I Division 1, 2, Groups B, C, D Class I, Zone 1, 2, Groups II, Class II, Division 1, 2, Groups E, F, G Class III Certified
