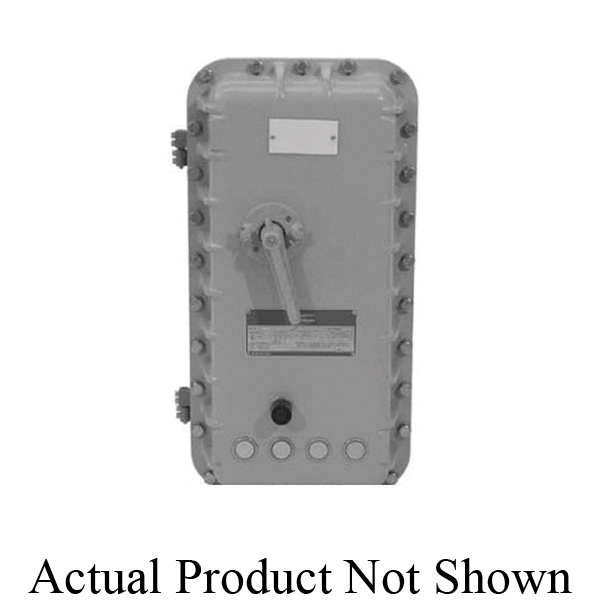

Appleton® AE2BA2W1 AEB Full Voltage Non-Reversing Starter, 120 VAC Coil, NEMA 4/4X/7B/7C/7D/9E/9F/9G
Sku #78138189090
MFG #AE2BA2W1
Attributes
| Series: | AEB |
| Amperage Rating: | 3 A |
| Motor Power: | 15 hp |
| Voltage Rating: | 240 V AC |
| Frequency Rating: | 60 Hz |
| Coil Voltage: | 120 V AC |
- Precision machined flame path between box and cover
- Bolt on slotted mounting feet
- Stainless steel, captive Quad-Lead® cover bolts (disengage in 1-1/2 turns)
- External stainless steel breaker operating handle
- Ground lug package and installation instructions for termination of ground wires enclosed
- Four point control terminal block, NEMA 1B with wire markers
- Breaker operators can be locked in the "ON/OFF" position (combination starters only)
- Four plugged 3/4 in NPSM outlets drilled and tapped for control devices
- Standard outlets top and bottom
- Plugged 1/2 in outlets top and bottom for breather and drain
- Components are mounted on a galvanized steel removable pan
- Enclosures are designed to accept Cutler-Hammer™ or Square D™ motor starters/circuit breakers
- O-ring gasket insures watertight integrity
- Constructional feature watertight
- Constructional feature dust-ignitionproof
- Constructional feature explosionproof
- Bolted enclosure
- Buy American Act Compliant|cCSAus 2561837|CSA C22.2 #0-10/C22.2 #14-10/C22.2 #25-1996/C22.2 #30-M1986/C22.2 #94-M91|NEC/CEC Class I Division 1 and 2 Group B C D/Class II Division 1 and 2 Group E F G/Class III|UL 50/508/1203
