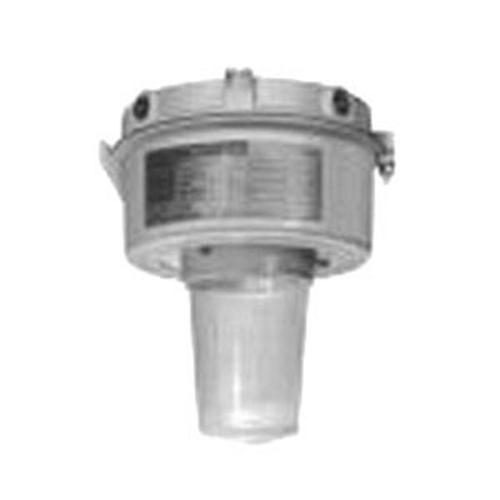

Appleton® Mercmaster™ III 400 KPCP2575J5GMT Enclosed Gasketed HID Luminaire With NEMA 5 Glass Refractor and Guard, (1) Lamp, 291 W Fixture, 120 to 277 V AC, Epoxy Powder Coated Housing
Sku #78138188610
MFG #KPCP2575J5GMT
Attributes
| Type: | Enclosed Gasketed |
| Voltage Rating: | 120 to 277 V AC |
| Amperage Rating: | 1.96/1.13/0.98/0.85 A Starting/2.5/1.45/1.25/1.1 A Operating |
| Series: | KP Series |
| Fixture Wattage: | 291 W |
| Lamp Wattage: | 250 W |
- Superior corrosion resistance
- Hinge has high lip for added safety during installation and servicing
- Hinge and bolt construction ensures 360 deg compression at all points on ballast housing gasket for positive sealing
- Swing away design of captive bolt and nut simplifies servicing
- Wide choice of photometric distributions
- Mogul base porcelain socket with nickel plated contacts has 200 deg C (392 deg F), welded leads, prewired to the ballast to ensure trouble free operation in high ambient temperatures
- Ground wire provided to bond hood and ballast housing for electrical protection
- One piece ballast housing for each component provides even heat dissipation for cooler operation and longer ballast life
- All Mercmaster™ III mounting hoods have provision for easy field installation of fuses in fixtures
- 1.96 A at 120 VAC, 1.13 A at 208 VAC, 0.98 A at 240 VAC, 0.85 A at 277 VAC starting, 2.5 A at 120 VAC, 1.45 A at 208 VAC, 1.25 A at 240 VAC, 1.1 A at 277 VAC operating
- For use in marine and wet locations, areas where flammable gases and vapors or combustible dusts are present under conditions defined by the national electrical code , non-hazardous locations where severe weather conditions, excessive moisture, dirt, dust or corrosive atmospheres are encountered, pulp and paper mills, processing plants, chemical plants, oil refineries, foundries, manufacturing plants, storage areas, waste and sewage treatment
- NEC/CEC Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, AEx nA nR IIC (Z2), Class I, Zone 2, Ex nR IIC (Z)|CSA Certified, Class I, Zone 2, AEx nR IIC (ZB), Class II, Division 1 and 2, Groups E, F, G, Class III, Simultaneous Exposure (Class I, Division 2/Class II, Division 1)|UL Listed: E10444/1598/1598A/844/60079-0/60079-15|cULus E10444|UL ANSI/UL 844, 1598, 60079-0, 60079-15|CSA 025428|CSA C22.2 No. 9/C22.2 No. 137|CAN/CSA E60079-0/E60079-15
