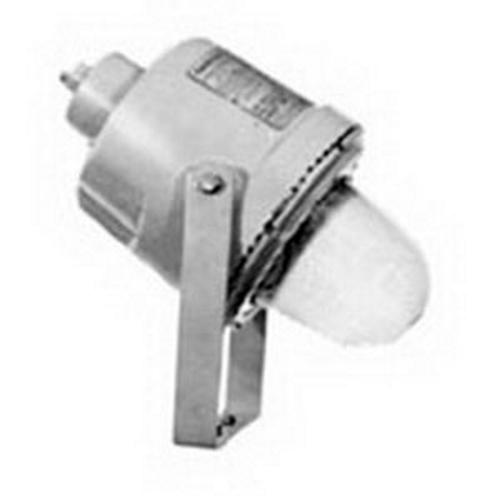

Appleton® Code Master™ 2 CFP400MT Explosionproof Integrally Ballasted Floodlight Fixture, (1) Metal Halide Lamp, 400 W Fixture, 120/208/240/277 V AC, Baked Epoxy-Clad Powder Coated Housing
Sku #78138187653
MFG #CFP400MT
Attributes
| Type: | Explosionproof Integrally Ballasted |
| Fixture Wattage: | 400 W |
| Lamp Type: | Metal Halide |
| Voltage Rating: | 120/208/240/277 V AC |
| Amperage Rating: | 3.7/2.1/1.8/1.75 A |
| Lamp Wattage: | 400 W |
- Fixtures operate safely in high ambient temperatures
- Arrangement of heat-producing components results in more efficient heat dissipation for cooler fixture operation
- All threaded joints are flame-tight
- Five threads are always fully engaged in an explosion proof manner
- Factory sealed fixture
- External seals not required
- Strategic location of lamp socket in combination with the interior prism design of the glass globe, provides optimum light distribution and control
- Heat and impact resistant globes have smooth dust resistant exterior
- Superior corrosion resistance, with epoxy powder coat finish
- Ballasts operate at low temperatures -29 deg C for PSMH and -40 deg C for HPS
- Furnished with trunnion 3/4 in hub (3/4-14 NPT)
- Used for installations in refineries, pipeline transportation facilities, drilling rigs and production facilities on land and marine platforms
- CSA C22.2 No 250|137|025428|NEC|CEC|UL 1598|844|E-10794 Listed
