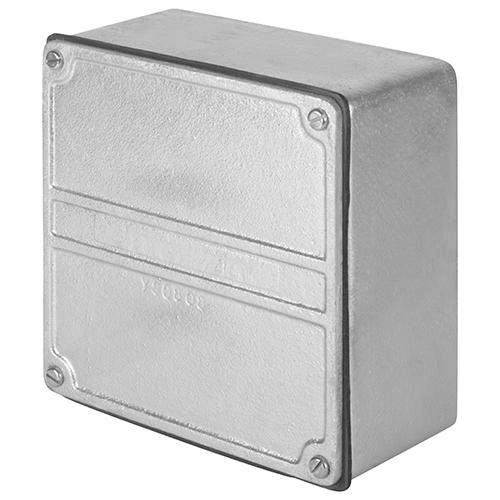

Appleton® W-YS-060604 Dust-Tight Raintight Unflanged Watertight Cast Junction Box, 6 in H x 6 in W x 4 in D, Flat/Gasketed/Screw-On Cover, NEMA 1/2/3/3R/3S/4/5/6/6P/12/12K/13 NEMA Rating, Cast Iron
Sku #78138187013
MFG #W-YS-060604
Attributes
| Type: | Dust-Tight Raintight Unflanged Watertight |
| Height: | 6 in |
| Depth: | 4 in |
| Series: | WYS |
| Width: | 6 in |
| NEMA Rating: | NEMA 1/2/3/3R/3S/4/5/6/6P/12/12K/13 |
- No spot welded seams like those found in formed sheet metal boxes
- Greater mechanical strength
- Thicker walls make them more suitable for drilling and tapping at the factory or in the field
- Cast metal enclosures will provide long life, are inherently corrosion resistant are able to withstand more mechanical abuse and have the lowest initial cost
- Mounting lugs are provided on all surface mounted boxes
- All mounting lugs will be located on the long sides of the box, unless otherwise specified
- Raintight boxes are constructed to withstand a beating rain
- Watertight boxes are constructed to prevent the entry of water under extreme conditions of weather
- Dust tight boxes are constructed to provide a degree of protection against dust and falling dirt
- Boxes have a post in each corner and allowances must be made for them when conduit entrances are to be located close to a corner
- Neoprene gasket located between cover and box
- Wide selection of sizes and locations for drilled and tapped and slip hole conduit entrances
- ARRA Compliant|UL 514A|UL 50|UL 50E|UL File No. E24824|CSA C22.2 No. 18.1|C22.2 No. 94.1|C22.2 No. 94.2|C22.2 No. 25|CSA File No. 020945|CEC Class II, Div 1 and 2, Class III
- Used indoor/outdoor or where subject to rain, dripping or splashing water or hose directed water
