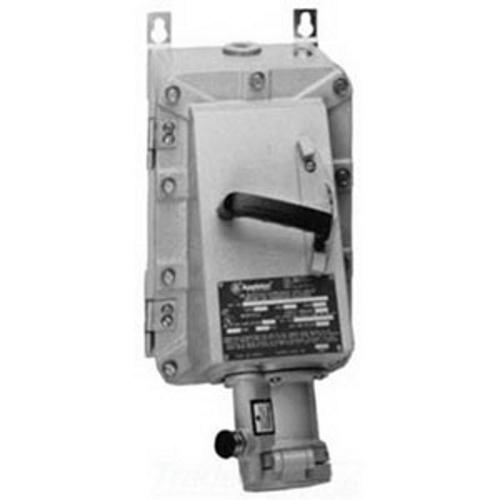

Appleton® EBR6034EH60 Receptacle With EHD 60 A 3-Pole Circuit Breaker and Mounting Box, 480 V AC, 60 A, 4 Poles, 3 Wires
Sku #78138186013
MFG #EBR6034EH60
Attributes
| Series: | EBR |
| Amperage Rating: | 60 A |
| Number of Wires: | 3 |
| Voltage Rating: | 480 V AC |
| Number of Poles: | 4 |
| NEMA Rating: | NEMA 3/3R/4/4X/7CD/9FG |
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Spring door keeps dust out of receptacle when plug is not in use, screw cap also supplied
- Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Contacts have beryllium copper wire springs
- Plug mechanical cable clamps prevent strain on cables, they meet or exceed UL strain relief pull-out requirements
- Neoprene bushing compressed by cable collar prevents entrance of water
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- 1-1/2 in NPT tapped conduit openings, one top to bottom
- 2 or 3 pole, non-fused motor circuit switch
- EBR and DBR: Interlocked circuit breaker provides interlocked connect and disconnect operation as well as short circuit and thermal time delay overload protection
- To operate, insert plug (which automatically locks into receptacle) and turn breaker handle to on position
- To remove plug, turn handle to off position, lift plug release knob and pull plug out
- ACP and CPH plug fits Powertite® series hazardous location EBR, EBRH and DBR receptacles
- EBR, EBRH and DBR receptacles: copper-free aluminum receptacle and mounting box
- copper-free aluminum housings CPH and ACP plugs
- Insulating blocks: Fiberglass reinforced polyester
- Epoxy powder coated receptacles, mounting boxes, cord connector housings and caps
- Weather-proof spring cover
- Flip cover suitable for NEMA 3, 3R only, NEMA 4 rating maintained with Appleton® NEMA 4 plug installed
- Constructional feature explosionproof and dust-ignitionproof
- Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed: E79132, E10784, E313360
- For locations where receptacles are used with stationary or portable electrically operated devices such as lighting systems, conveyors, heaters, motor generator sets, air conditioners, compressors, pumps and damp or corrosive conditions exist
