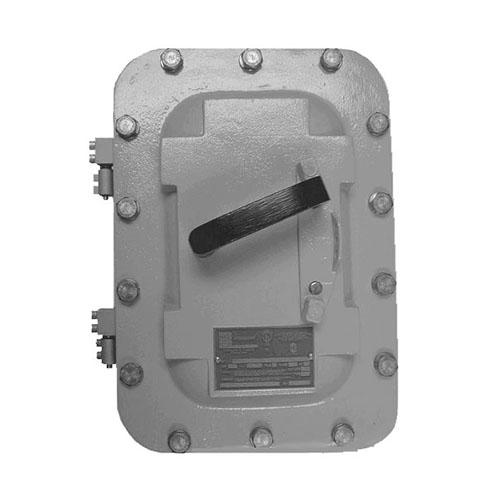

Appleton® AEAB3036DS Dust-Ignitionproof Explosionproof Hinged Non Fused Disconnect Switch, 600 V AC/120 to 250 V DC, 30 A, 25 hp, 7-1/2 hp, 3 Poles
Sku #78138184802
MFG #AEAB3036DS
Attributes
| Type: | Dust-Ignitionproof Explosionproof Hinged Non Fused |
| Voltage Rating: | 600 V AC/120 to 250 V DC |
| Horsepower: | 25 hp, 7-1/2 hp |
| Series: | AE Series |
| Amperage Rating: | 30 A |
| Phase: | 3 |
- Precision machined flame path between box and cover, O-ring gasket ensures watertight integrity
- Bolt-On stainless steel slotted mounting feet
- Stainless steel, captive Quad-Lead™ cover bolts are standard
- Ground lug package and installation instructions for termination of ground wire enclosed
- External operating handle with stops for limiting handle travel
- Disconnects operators can be locked in the On or Off position
- External flange maximizes internal space
- Standard outlets top and bottom for line and load wiring
- Plugged 1/2 in outlets top and bottom for breather and drain
- Disconnects mounted on a galvanized steel removable pan
- ARRA Compliant|Buy American Act Compliant|NEC Class I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III|UL 1203|UL File No. E84577
- Overload and Short Circuit Protection, Control of Lighting and Power Circuits Applications
