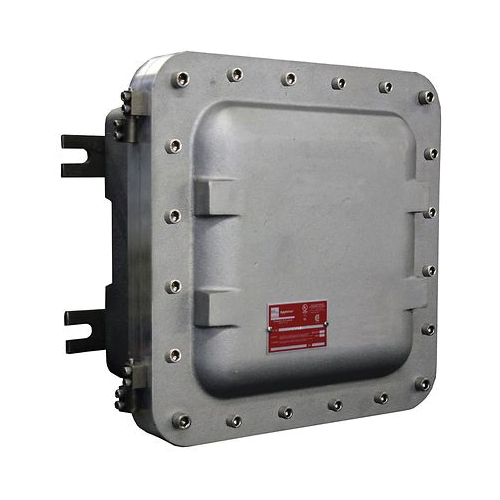

Appleton® AJBEW161606 Dust-Ignitionproof Explosionproof Cast Junction Box, 21 in W x 9.81 in D x 21 in H, NEMA 4/9EFG/IP66, Copper-Free Aluminum
Sku #78138184653
MFG #AJBEW161606
Attributes
| Type: | Dust-Ignitionproof Explosionproof |
| Width: | 21 in |
| Height: | 21 in |
| Series: | AJBEW |
| Depth: | 9.81 in |
| NEMA Rating: | NEMA 4/9EFG/IP66 |
- Precision machined flame path between box and cover
- Bolt on stainless steel slotted mounting feet for horizontal or vertical mounting
- Flexible hinge mounting either left or right side is standard on all boxes 12 x 12 x 6 and larger
- External flange maximizes internal space
- Wall THK suitable for minimum of five full threads
- Provision for mounting pan
- Wide range of drilled and tapped outlets
- Ground lug package and installation instructions for termination of ground wire enclosed
- O-ring gasket insures watertight integrity
- Terminals, Splicing Wires, Pull Boxes, Bus Boxes and Hazardous Locations
- Stainless Steel Cover Bolt, Neoprene O-Ring and Galvanized Steel Mounting Pan
- CSA C22.2 File No. 25, C22.2 File No. 30|CSA File No. 042129|cULus File No. E85310|NEC/CEC Class I, Div 1 and 2, Groups B, C, D|Class I, Zone 1 and 2, Groups IIA, IIB +H2|Class II, Div 1 and 2, Groups E, F, G|Class III|RoHS Compliant|UL 886|UL 1203
