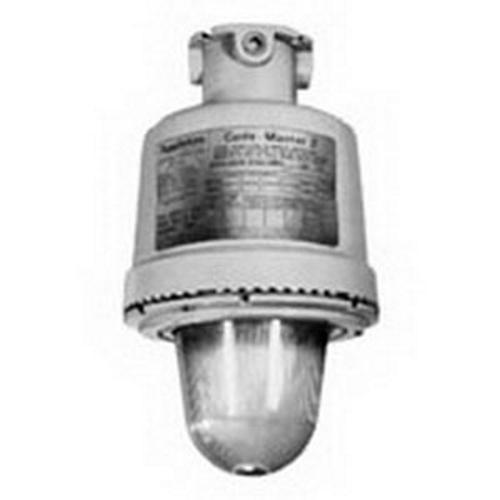

Appleton® Code Master ™ 2 CMBP400MT Light Fixture, (1) Lamp, 400 W Fixture, 120/208/240/277 V AC, Epoxy Powder Coated Housing
Sku #78138184550
MFG #CMBP400MT
Attributes
| Series: | CM Series |
| Fixture Wattage: | 400 W |
| Lamp Wattage: | 400 W |
| Voltage Rating: | 120/208/240/277 V AC |
| Amperage Rating: | 1.5 to 1.75 A |
| Number of Lamps: | 1 |
- Chemical and Petrochemical Plants such as Manufacturers of Plastics, Paints and Thinners, Refineries and in Other Process Areas Where Ignitable Vapors, Dust, Moisture, Marine and Corrosive Elements May be Present and Wet Locations
- Fixtures operate safely in high ambient temperatures, for example, in class I areas the 150 W HPS fixture operates at a maximum temperature of 120 deg C in a 65 deg C ambient 100 deg C temperature in a 40 deg C ambient
- Arrangement of heat producing components results in more efficient heat dissipation for cooler fixture operation
- Threading of fixture unit onto mounting hood makes electrical connection, only wiring required is attaching two wires to connection block in mounting hood
- Safe, easy servicing without disconnecting any wiring, wireless fixture unit easily threads off mounting hood for convenient servicing or for immediate replacement with a stand by unit
- Acme double-lead threads speed installation and fixture removal from mounting hood only half as many turns are required as for single lead threads, threads do not stick or gall, eliminating problems often encountered with single lead threads during fixture unit removal
- All threaded joints are flame-tight
- Integrally ballasted HID lighting fixtures separate ballasts not required
- Factory sealed, external seals not required
- Strategic location of lamp socket in combination with interior prism design of the glass globe, provides optimum light distribution and control
- Porcelain socket with nickel plated phosphor bronze screw shell, assures long trouble free operation in high ambient areas
- Fiberglass reinforced polyester reflectors, in standard dome, deep dome or 30 deg angle, ideal in installations where luminaries is subject to exceptionally severe corrosive atmospheres, high bay aluminum reflector is indicated in installations where mounting height from work plane ranges from 20 ft/6 m and higher
- Explosion proof, dust-ignition proof
- Heat and impact resistant glass globes
- Copper free (4/10 Of 1% maximum) aluminum bodies and guard
- Class I Division 1 and Division 2, Groups C/D|Class II, Division 1 and 2, Groups E/F/G|Class III|UL 844/1598 File No. E10444
