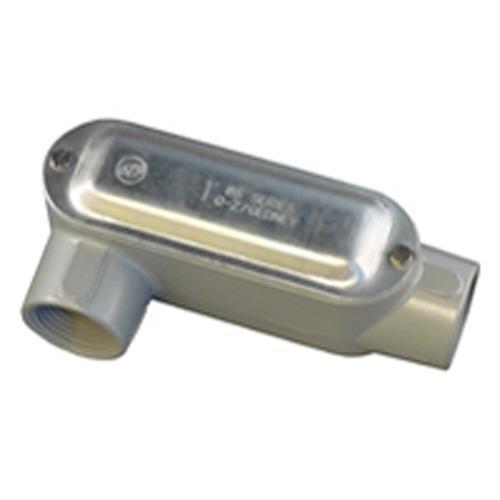

Appleton® UNILETS™ LR-125ACGA Type LR Conduit Outlet Body With Cover and Gasket, 1-1/4 in Hub, Form 85 Form, 34.8 cu-in Capacity, Pressure Cast Aluminum, Epoxy Powder Coated
Sku #78138182608
MFG #LR-125ACGA
Attributes
| Type: | Type LR |
| Number of Hubs: | 2 |
| Form: | Form 85 |
| Hub Size: | 1-1/4 in |
| Capacity: | 34.8 cu-in |
| Enclosure: | NEMA FB-1/FB-2.1 |
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Roomy interiors more wiring space
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 85™ copper free aluminum UNILETS™ are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance
- Lightweight aluminum facilitates shipping, handling and installing
- Sizes with flat back design ideal where fitting is mounted flat against surface
- Internal volume and maximum wire capacity clearly marked on castings
- Threaded style is raintight when used with casketed covers
- UL 514A/514B/E2527|CSA C22.2 No. 18.3/065183
- For Rigid Steel/Aluminum, IMC and EMT Conduit
