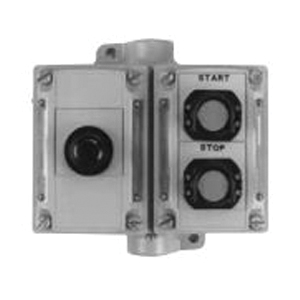

Appleton® ED2S250J1U2 Division 2 Contender™ 2-Gang 2-Circuit Dead-End Control Station, 120/240 V AC, 2 Operators, NEMA 3/3R/4/4X/12 NEMA Rating
Sku #78138181071
MFG #ED2S250J1U2
Attributes
| Type: | 2-Gang 2-Circuit Dead-End |
| Voltage Rating: | 120/240 V AC |
| Legend: | STOP/START |
| Series: | Division 2 Contender™ |
| Number of Operators: | 2 |
| Actuator: | Push Button |
- Factory sealed eliminates the need for adding sealing fittings and compound at each conduit entrance
- Epoxy powder coat finish for enhanced corrosion resistance
- Corrosion resistant captive stainless steel screws holds cover to body
- Silicone gasket ensures high degree of water ingress protection
- Bodies furnished with internal ground screw and external ground lug
- Wide variety of devices and options results in a control station tailor made to the application
- Pilot light employs LED cluster with lifetime of 100000 hr that can be used at either 120 VAC or 240 VAC
- Improved pilot light featuring enhanced circuitry to prevent ghost voltage
- The Labyrinth switch used in pushbuttons and selector switches is rated A600 heavy pilot duty and P150
- Pushbuttons and selector switches have VAC and VDC ratings as standard
- (1) LED pilot light
- IP66 enclosure
- CSA C22.2 #14-M/C22.2 #213-M/C22.2 #25/C22.2 #30|cULus E10449/E81751|NEC/CEC Class I Division 1 Group B C D Zone 2/Class II Division 1 and 2 Group E F G/Class III|UL 508/698/1203/1604/ISA 12.12.01
