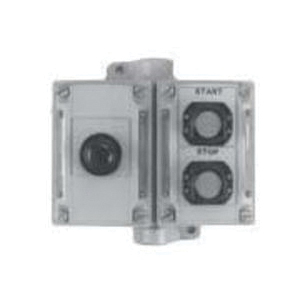

Appleton® Division 2 Contender™ ED2S210J1U2 2-Gang Dead End Pushbutton/Pilot Light, NEMA 3/3R/4/4X/12
Sku #78138181065
MFG #ED2S210J1U2
Attributes
| Type: | 2-Gang Dead End |
| Legend: | Start/Stop/Blank |
| NEMA Rating: | NEMA 3/3R/4/4X/12 |
| Contact Mode: | Momentary |
| Legend Color: | Green/Red |
| Operating Temperature: | -25 to 40 deg C |
- cULus E10449/E81751|UL 508/698/1203/1604 ISA 12.12.01, C22.2 File No. 14-M, C22.2 File No. 213-M, C22.2 File No. 25, C22.2 File No. 30|NEC Compliant|CEC Class I Div 2, Groups B, C, D zone 2 class II, Div 1 and 2, Groups E, F, G class III
- Corrosion-resistant captive stainless steel screws hold cover to body
- Silicone gasket ensures high degree of water ingress protection
- The labyrinth switch used in push buttons and selector switches, is rated A600 heavy pilot duty and P150
- Wide variety of devices and options results in a control station tailor made to the application
- Pilot light employs LED cluster with lifetime of 100000 hr that can be used at either 120/240 VAC, optional pilot light has 12/24 VDC ratings
- Bodies furnished with internal ground screw and external ground lug
- Factory sealed, no external seals required
- Used in washdown areas and other damp, wet and highly corrosive areas
