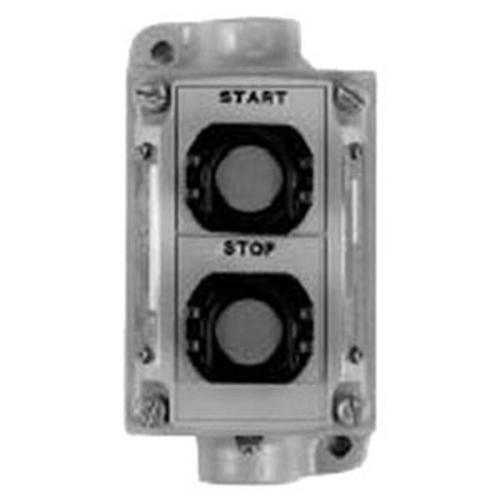

Appleton® Division 2 Contender™ ED2S175U2 ED2 1-Gang 2-Circuit Dead End Pushbutton Station, 120/240 V AC/12/24 V DC, NEMA 3/3R/4/4X/12 NEMA Rating
Sku #78138181063
MFG #ED2S175U2
Attributes
| Type: | 1-Gang 2-Circuit Dead End |
| Voltage Rating: | 120/240 V AC/12/24 V DC |
| Legend: | STOP/START |
| Series: | ED2 |
| Contact Mode: | Momentary |
| Legend Color: | Green/Red |
- Corrosion resistant captive stainless steel screws holds cover to body
- Silicone gasket ensures high degree of water ingress protection
- The labyrinth switch used in push buttons and selector switches, is rated A600 heavy pilot duty and P150
- Wide variety of devices and options results in a control station tailor made to the application
- Bodies furnished with internal ground screw and external ground lug
- Factory sealed, no external seals required
- Used in washdown areas and other damp, wet and highly corrosive areas
- UL 508/698/1203/1604|ISA 12.12.01|UL File No. E10449/E81751|CSA C22.2 No. 14-M/213-M/25/30, Class I, Div 2 Groups B, C, D, zone 2, Class II, Div 1 and 2, Groups E, F, G, Class III
