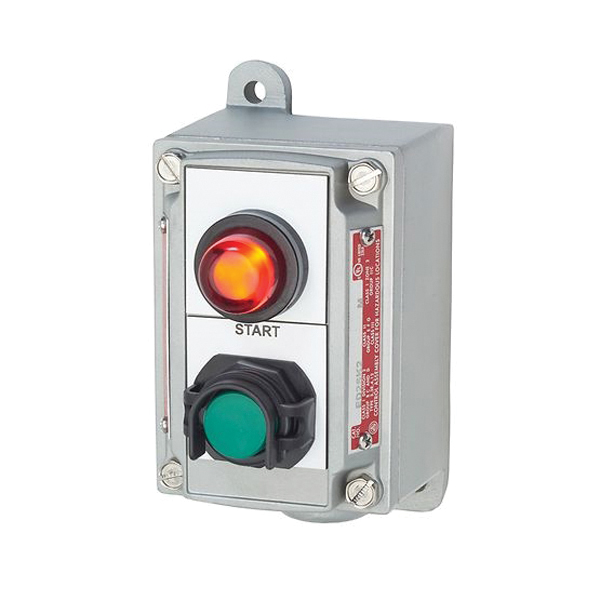

Appleton® ED2S110U1 Division 2 Contender™ 1-Gang 1-Circuit Dead-End Control Station, 120/240 V AC, 1NO-1NC Contact, 1 Operator, NEMA 3/3R/4/4X/12 NEMA Rating
Sku #78138181044
MFG #ED2S110U1
Attributes
| Type: | 1-Gang 1-Circuit Dead-End |
| Voltage Rating: | 120/240 V AC |
| Contact Configuration: | 1NO-1NC |
| Series: | Division 2 Contender™ |
| Number of Operators: | 1 |
| Contact Rating: | 10 A at 600 V AC |
- Factory sealed eliminates the need for adding sealing fittings and compound at each conduit entrance
- Epoxy powder coat finish for enhanced corrosion resistance
- Corrosion resistant captive stainless steel screws holds cover to body
- Silicone gasket ensures high degree of water ingress protection
- Bodies furnished with internal ground screw and external ground lug
- Wide variety of devices and options results in a control station tailor made to the application
- Pilot light employs LED cluster with lifetime of 100000 hr that can be used at either 120 VAC or 240 VAC
- Improved pilot light featuring enhanced circuitry to prevent ghost voltage
- The Labyrinth switch used in pushbuttons and selector switches is rated A600 heavy pilot duty and P150
- Push buttons and selector switches have VAC and VDC ratings as standard
- Constructional feature explosionproof
- For use in washdown areas and other damp, wet and highly corrosive areas for control operation of motors and other equipment, hazardous locations
- CSA C22.2 #14-M/C22.2 #213-M/C22.2 #25/C22.2 #30|cULus E10449/E81751|NEC/CEC Class I Division 2 Group B C D Zone 2/Class II Division 1 and 2 Group E F G/Class III|UL 508/698/1203/1604|ISA 12.12.01
