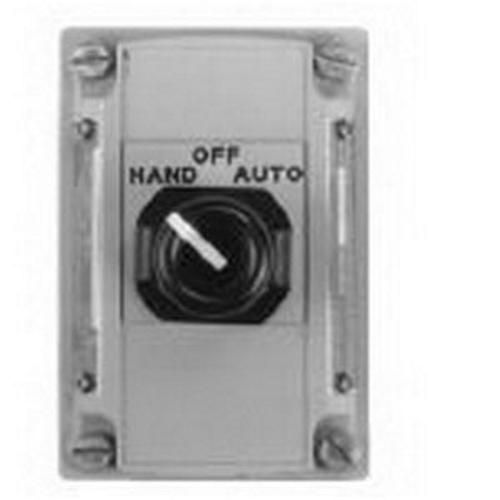

Appleton® Division 2 Contender™ ED2KB102 2-Circuits 3-Position Selector Switch Control Station, 120/240 V AC, 2NO Contact, 1 Operators, NEMA 3/3R/4/4X/12/IP66 NEMA Rating
Sku #78138181028
MFG #ED2KB102
Attributes
| Type: | 2-Circuits 3-Position |
| Number of Operators: | 1 |
| Operator Type: | Knob |
| Voltage Rating: | 120/240 V AC |
| Contact Configuration: | 2NO |
| Legend: | Auto/Hand/Off |
- Corrosion resistant captive stainless steel screws holds cover to body
- Silicone gasket ensures high degree of water ingress protection
- The labyrinth switch used in push buttons and selector switches, is rated A600 heavy pilot duty and P150
- Wide variety of devices and options results in a control station tailor made to the application
- Pilot light employs LED cluster with lifetime of 100,000 hours that can be used at either 120/240 VAC
- Optional pilot light has 12/24 Vdc ratings
- Bodies furnished with internal ground screw and external ground lug
- Factory sealed-no external seals required
- For hazardous locations
- Class I, Div 2, Groups B, C, D, Zone 2, Class II, Div 1, 2, Groups E, F, G, Class III, C22.2 File No. 14-M/213-M/25/30|C/US UL File No. E10449/E81751|ISA 12.12.01|UL 508/698/1203/1604
