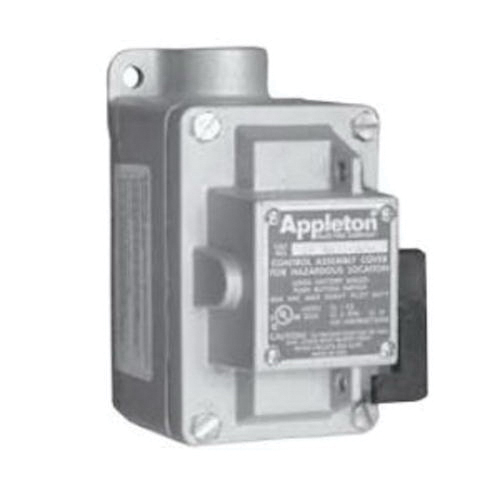

Appleton® EDS175RU1A Dead End Explosionproof Pushbutton Control Station With Rocker Arm Handle, 600 V AC, 10 A, 1NO-1NC Contact, NEMA 3/7CD/9EFG NEMA Rating
Sku #78138180049
MFG #EDS175RU1A
Attributes
| Type: | Dead End Explosionproof |
| Voltage Rating: | 600 V AC |
| Contact Configuration: | 1NO-1NC |
| Series: | EDS |
| Amperage Rating: | 10 A |
| Contact Mode: | Momentary |
- For hazardous location, used in classified areas where flammable vapors, gases or highly combustible dusts are present, installation in chemical and petrochemical plants, refineries and other process industries
- Factory sealed eliminates need for adding sealing fittings and compound at each conduit entrance
- Switch is enclosed in separate sealing chamber
- Sealing chamber has smooth, double flanges that mate both to cover and mounting enclosure to provide flame-tight joints
- Pigtail leads from push buttons are factory sealed in sealing well
- Stainless steel hexagonal head screws attach sealing chamber to cover and mounting enclosure
- Side rocker arm pushbutton has lockout holes
- UL 508/698/1203|UL File No. E10449|UL File No. E81751, Class I, Div 1 and 2, Groups B, C, D Class II, Div 1 and 2, Groups E, F, G Class III
- Internal Ground Screw
