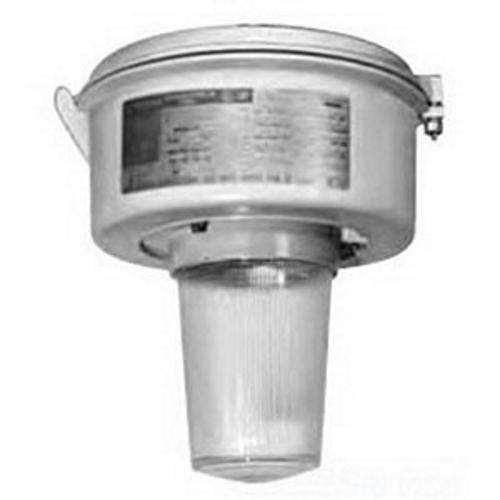

Appleton® Mercmaster™ III 250 KPFL1575GMT Enclosed Gasketed HID Luminaire With Glass Globe and Guard, (1) Lamp, 188 W Fixture, 120 to 277 V AC, Epoxy Powder Coated Housing
Sku #78138176201
MFG #KPFL1575GMT
Attributes
| Type: | Enclosed Gasketed |
| Voltage Rating: | 120 to 277 V AC |
| Amperage Rating: | 2/1.15/1/0.85 A Starting/1.7/0.95/0.85/0.72 A Operating |
| Series: | KP Series |
| Fixture Wattage: | 188 W |
| Lamp Wattage: | 150 W |
- cULus E10444|UL ANSI/UL 844/1598/60079-0/60079-15|CSA 025428|CSA C22.2 No. 9|C22.2 No. 137|CAN/CSA E60079-0/E60079-15|NEC/CEC Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, AEx nA nR IIC (Z2), Class I, Zone 2, Ex nR IIC (Z)|CSA Certified Class I, Zone 2, AEx nR IIC (ZB), Class II, Division 1 and 2, Groups E, F, G, Class III|NEC/CEC, Class I, Division 2/Class II, Division 1
- For use in marine and wet locations, areas where flammable gases and vapors or combustible dusts are present under conditions defined by the national electrical code, non-hazardous locations where severe weather conditions, excessive moisture, dirt, dust or corrosive atmospheres are encountered, pulp and paper mills, processing plants, chemical plants, oil refineries, foundries, manufacturing plants, storage areas and marine applications
- Modular design allows scores of fixture component combinations to meet installation and lighting needs
- Many most used combinations are offered prewired and assembled, complete with lamp, packaged in a single carton and ready to install
- For high corrosion resistance, fixture housing, mounting hoods and guards are copper free cast aluminum with baked epoxy finish, electrostatically applied for uniformity, all exposed hardware is stainless steel
- Hinge has high lip for added safety during installation and servicing
- Hinge and bolt construction assures 360 deg compression at all points on ballast housing gasket for positive sealing
- Swing away design of captive bolt and nut simplifies servicing
- Body gaskets and globe gaskets are high temperature silicone rubber
- Capacitors are non-PCB type, thermally isolated from ballast
- Mogul base porcelain socket with nickel plated contacts has 200 deg C (392 deg F), welded leads, prewired to the ballast
- 2 A at 120 VAC, 1.15 A at 208 VAC, 1 A at 240 VAC, 0.85 A at 277 VAC starting, 1.7 A at 120 VAC, 0.95 A at 208 VAC, 0.85 A at 240 VAC, 0.72 A at 277 VAC operating
