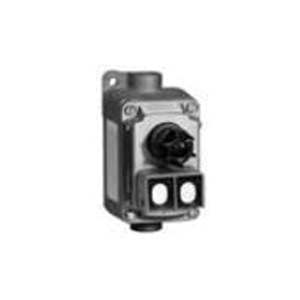

Appleton® EFD2234SA 1-Gang 2-Circuit Dead-End Control Station, 2NO-2NC Contact, 2 Operators, NEMA 3/7CD/9EFG NEMA Rating
Sku #78138173922
MFG #EFD2234SA
Attributes
| Type: | 1-Gang 2-Circuit Dead-End |
| Number of Operators: | 2 |
| Contact Rating: | 10 A at 600 V AC |
| Series: | EFD |
| Contact Configuration: | 2NO-2NC |
| Operator Type: | Momentary |
- Constructional feature explosionproof and dust-ignitionproof
- Factory sealed eliminates the need for adding sealing fittings and compound at each conduit entrance
- The devices are enclosed in a separate sealing chamber that has smooth, double flanges that mate both to the cover and mounting enclosure to provide flanges
- Dozens of possible combinations of pushbuttons, pilot lights and selector switches
- Epoxy powder coat finish for enhanced corrosion resistance
- Factory sealed pilot lights are supplied with jewel/guard assembly and 120 VAC/VDC, 50/60 Hz, 6 W lamp (LED provided as option)
- Heavy duty pushbuttons, 10 A, 600 VAC rated
- Enclosed stainless steel helper spring prevents accidental operation of pushbutton in severe vibration installations
- Momentary pushbuttons are supplied with lockout type guards as standard
- A hole in the guard will accept locks with up to 1/4 in hasp
- Permits locking of pushbutton to prevent unauthorized operation
- Large backbox for ample wiring room supplied with internal ground screw
- Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
- Smooth rounded integral bushing in each hub protects conductor insulation
- Stainless steel pushbutton shaft operates within stainless steel bushing assuring long, maintece free operation
- Pushbutton and selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements
- Assures positive contact and long, trouble-free operation
- Clearly marked terminals with brass screws assure quick, easy wiring
- (1) 120 VAC 6 W 6S6 pilot light
- Corrosion resistant captive stainless steel hex head cap screws hold covers to body
- For chemical and petrochemical plants, refineries, other process industries and hazardous location
- Internal Ground Screw
- 1 Year Limited
- CSA C22.2 #14|cULus E10449/E81751|NEC/CEC Class I Division 1 Group C D/Class I Division 2 Group B C D/Class II Division 1 and 2 Group E F G/Class III|UL 508/698/1203
