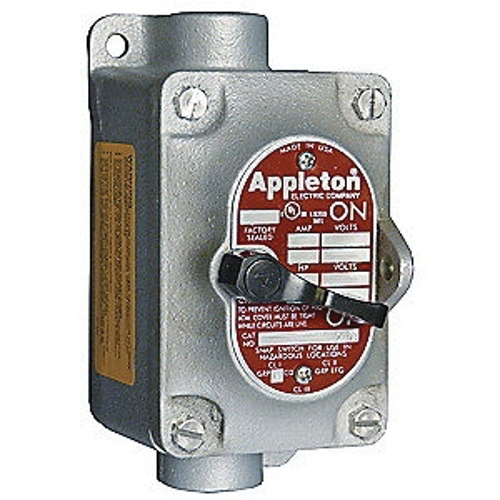

Appleton® EDSC3593SA Contender™ 1-Gang Feed-Through Tumbler Switch Control Station, NEMA 3/7C/7D/9E/9F/9G
Sku #78138173836
MFG #EDSC3593SA
Attributes
| Type: | 1-Gang Feed-Through |
| Number of Poles: | 2 |
| Actuator: | Front Operated Lever |
| Series: | Contender™ EDSC |
| Contact Rating: | 30 A at 120 to 277 V AC |
| Connection Type: | 1 in Hub |
- Explosionproof, dust-ignitionproof, ideal for installation in chemical and petrochemical plants, refineries and other process industries
- Enclosures have external mounting lugs for ease of mounting
- Smooth rounded integral bushing in each hub protects conductor insulation
- Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure
- Stainless steel hex head cap screws for attaching cover to mounting enclosure
- Choice of front-operating handle may be locked in ON/OFF position
- Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements
- Factory sealed switch
- Aluminum body and cover
- 30 A switches 2 hp at 120/240 VAC
- Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads
- For installation in chemical plants, petrochemical plants, refineries and other process industries
- Triple coat finish (1) electro-zinc plated, (2) polished chrome, (3) epoxy powder coated
- 1 Year Limited
- For use in classified areas where ignitable vapors, gases or highly combustible dusts are present
- Internal Ground Screw
- cULus Listed|NEC/CEC Class I Division 1 Group C D/Class I Division 2 Group B C D/Class II Division 1 and 2 Group E F G/Class III|UL 894/1203/E10523/E81751
