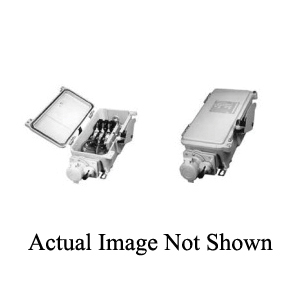

Appleton® WSR63542 Grounding Style 2 Non Fused Interlocked Receptacle With Enclosed Disconnect Switch, 600 V AC/250 V DC, 60 A, 4 Poles, 3 Wires
Sku #78138171805
MFG #WSR63542
Attributes
| Type: | Grounding Style 2 Non Fused |
| Voltage Rating: | 600 V AC/250 V DC |
| Horsepower: | 60 hp |
| Series: | WSR |
| Amperage Rating: | 60 A |
| Frequency Rating: | 50/60 Hz |
- Shell and extra pole grounding style 2
- For use where an interlocked disconnect switch is desired to control a Powertite receptacle and insertion or removal of plug
- Short circuit withstand rated to 200000 RMS symmetrical amps
- Unit is equipped with defeatable door interlock which allows emergency access when switch is energized
- Cover can be padlocked closed
- Dead front design receptacle is not energized until plug is fully inserted and switch is engaged
- Without viewing window
- Corrosion resistant, raintight, watertight
- Powertite™ ACP and CPH Plugs, Batch Feeder, Compressor, Conveyor, Generator, Industrial Plant, Infrared Oven, Marine Dock, Truck Terminal and Welder Applications
- UL 98|UL 50E|UL 1682|UL 1686|UL File No. E145917|UL File No. E160652|CSA C22.2 No.4|C22.2 No. 182.1|CSA File No. 025875
