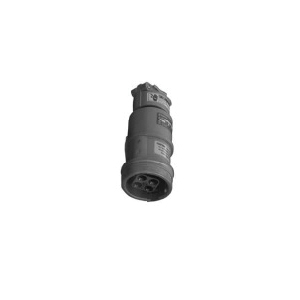

Appleton® Powertite® ARC6023BCRS ARC 1-Phase Grounding Style 2 Weatherproof Pin and Sleeve Connector Body With Reverse Service, 600 V AC/250 V DC, 60 A, 3 Poles, 2 Wires
Sku #78138171122
MFG #ARC6023BCRS
Attributes
| Type: | 1-Phase Grounding Style 2 Weatherproof |
| Voltage Rating: | 600 V AC/250 V DC |
| Frequency Rating: | 50/400 Hz |
| Series: | ARC |
| Amperage Rating: | 60 A |
| Number of Poles: | 3 |
- Shell and extra pole grounding style 2
- Designed to supply power to portable or fixed electrical equipment
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Natural finish glass filled polyester insulating blocks
- 5/16 in Dia wire recess
- Locking screw and slot prevents plug cable collar from "backing off"
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
- Water resistant
- Epoxy powder coated
- 1/2 in Dia minimum outer cable and 1-1/4 in Dia maximum outer cable
- CSA C22.2 #182.1/CSA File #065179|UL 1682/1686/50E File #E145916/E145917
- ACP6023BC Metallic Clamping Ring Plug, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Ship To Shore and Rough Usage Construction Applications
