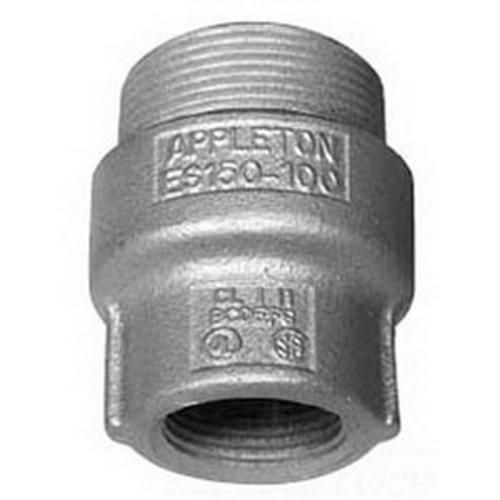

Appleton® Unilets™ ES150100 Dust Ignitionproof Explosionproof Sealing Hub, 1 x 1-1/2 in, For Use With Threaded Rigid Metal and IMC Conduit, Malleable Iron, Tri-Coated
Sku #78138170322
MFG #ES150100
Attributes
| Type: | Dust Ignitionproof Explosionproof |
| Suitable For Use With: | Threaded Rigid Metal and IMC Conduit |
| Color: | Silver |
| Size: | 1 x 1-1/2 in |
| Material: | Malleable Iron |
| Finish: | Tri-Coated |
- For sealing vertical conduit risers at switch gear and motor control centers, sheet metal structures or cast boxes and enclosures and can be used as a male thread enlarger or conduit hub in an ordinary location
- Explosionproof, dust-ignition proof
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Allows up to 25% conduit fill in compliance with the NEC
- Can be used as a male thread enlarger or conduit hub in an ordinary location
- Triple coat of zinc electroplate, chromate and epoxy powder coated finish
- 1 in male x 1/2 in male x 1 in female hub
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- Class I, Div 1, 2, Groups A, B, C, D Class II, Div 1, 2, Groups E, F, G Class III|UL 886 1203 File No. E10444|CSA C22.2 File No. 30/065181|RoHS Compliant
