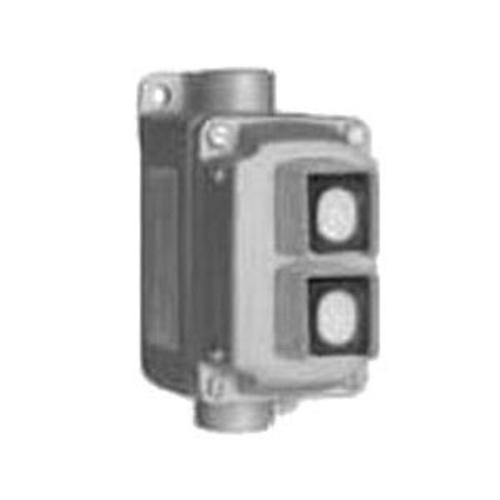

Appleton® EFDCB175U2 EFDB 2-Gang 2-Circuit Feed-Through Pushbutton Control Station, 600 V AC, 10 A, 1NO-1NC Contact, 2 Operators, NEMA 3/7CD/9EFG NEMA Rating
Sku #78138170169
MFG #EFDCB175U2
Attributes
| Type: | 2-Gang 2-Circuit Feed-Through |
| Voltage Rating: | 600 V AC |
| Number of Operators: | 2 |
| Series: | EFDB |
| Amperage Rating: | 10 A |
| Contact Configuration: | 1NO-1NC |
- Eliminate need for adding sealing fittings and compound at each conduit entrance
- Dozens of possible combinations of push buttons, selector switches and pilot lights
- Smooth, rounded integral bushing in each EFD/EFDB hub protects conductor insulation
- Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
- Stainless steel pushbutton shaft operates within stainless steel bushing assuring long, maintece free operation
- Pushbutton and selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements
- Assures positive contact and long, trouble free operation
- Enclosed stainless steel helper spring prevents accidental operation of pushbutton in severe vibration installations
- Pushbutton models also available with dust cap for use in areas where excessive dust, moisture or corrosive conditions are encountered
- Corrosion resistant captive stainless steel hex head cap screws hold EFKB covers to body
- Factory sealed selector switches furnished with nylon camoperated, heavy duty push buttons for either 2-position or 3-position maintained contact operation
- For remote control of motors
- Class I, Div 1, Groups, C, D Class I, Div 2, Groups B, C, D, Class II, Div 1, 2, Groups E, F, G, Class III|UL 508/698/1203
