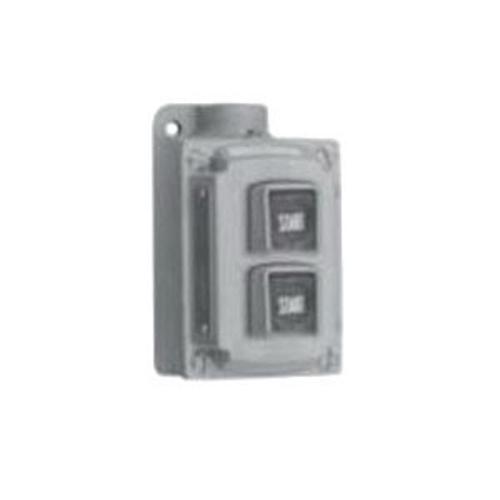

Appleton® Contender™ EDS2190 1-Gang 2-Circuit Dead End Pushbutton Control Station, 600 V AC, 10 A, 2NO-2NC Contact, 2 Operators, NEMA 3/7CD/9EFG NEMA Rating
Sku #78138169895
MFG #EDS2190
Attributes
| Type: | 1-Gang 2-Circuit Dead End |
| Voltage Rating: | 600 V AC |
| Number of Operators: | 2 |
| Series: | EDS |
| Amperage Rating: | 10 A |
| Contact Configuration: | 2NO-2NC |
- For remote control of motors
- Finish is epoxy powder coat for enhanced corrosion resistance
- Large back box for ample wiring room
- Ground screw installed in bodies for ground continuity
- Corrosion resistant stainless steel hexagonal head captive screws hold covers to body
- Factory sealed enclosure eliminates need for adding sealing fittings and compound at each conduit entrance
- Factory sealed pilot lights supplied with jewel/guard assembly and 120 VAC/VDC, 50/60 Hz, 6 W lamp (LED provided as option)
- Dozens of possible combinations of push buttons, pilot lights and selector switches
- Accurately tapped, tapered hubs for tight rigid joints and ground continuity
- Stainless steel pushbutton shaft operates within stainless steel bushing assuring long, maintece free operation
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Pushbutton and selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements
- Assures positive contact and long, trouble free operation
- Enclosed stainless steel helper spring prevents accidental operation of pushbutton in severe vibration installations
- All momentary push buttons are supplied with lockout type guards as standard
- Hole in guard will accept locks with up to 1/4 in hasp
- Permits locking of pushbutton to prevent unauthorized operation
- Clearly marked terminals with brass screws and spade terminals assure quick, easy wiring
- UL 508/698/1203 File No. E10449/E81751|Class I, Div 1, Groups C, D, Class I, Div 2, Groups B, C, D Class II, Div 1 And 2, Groups E, F, G And Class III
